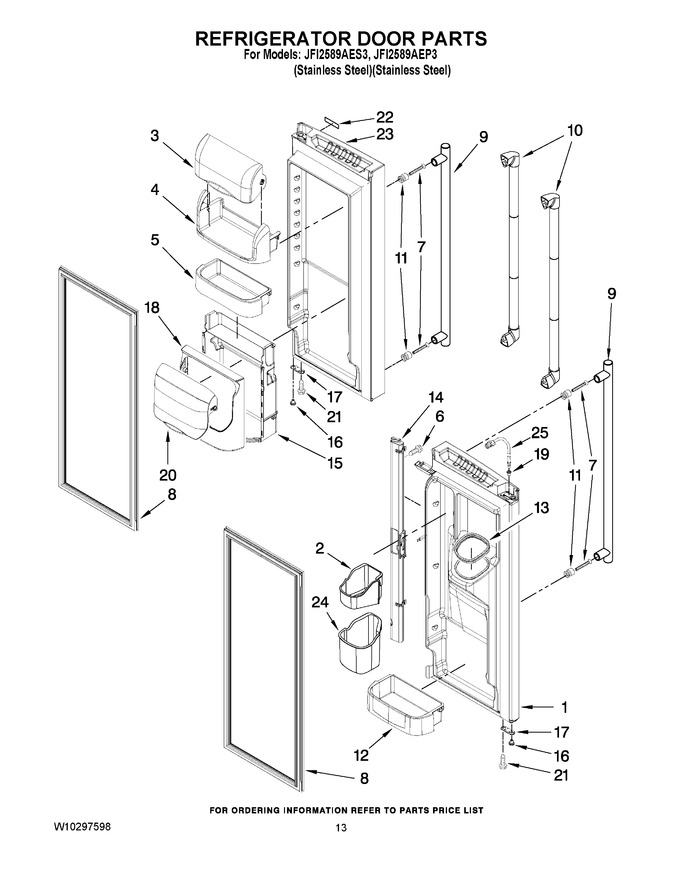

Diagram #	Part Number	Description	Availability	Ships	Price
1	12978066SQ	Door, Left (stainless)	Appelez-nous	-
2	W10187453	Bin, Upper Door (Replaces: 12977401)			$ 69.60
3	WP67003637	Door, Dairy (Replaces: 12804701SP)		Immediately	$ 78.73
4	WP67001279	Tray, Dairy (Replaces: 12369502SP)		Immediately	$ 83.82
5	WP67006313	Bin, Shelf (chiller Top) (Replaces: 12945801SP)		Immediately	$ 80.59
6	W11311945	Screw (Replaces: 12990204)			$ 14.02
7	WPW10133608	Screw, Handle (Replaces: 12991202)			$ 8.30
8	W11378944	Gasket, Door (black) (Replaces: W10163898)		Immediately	$ 187.59
9	12850919	Handle, Door (stainless (for Jfi2589aes3))			$ 37.02
10	WP12859109	Handle, Door (stainless (for Jfi2589aep3)) (Replaces: 12859109)			$ 305.69
11	12945201	Mount, Handle			$ 35.20
12	WP12840004	Bin, Shelf (gallon) (Replaces: 12840004)			$ 90.37
13	WPW10287601	Seal, Ice Chute (Replaces: 12999902)		Immediately	$ 31.20
14	WPW10151713	Mullion, Door (black) (Replaces: 12722813B)			$ 325.79
15	W11266639	Frame, Chiller (rear) (Replaces: 12945601SP)			$ 256.79
16	WP67003639	Closure, Door (black) (Replaces: 12028505B)			$ 86.02
17	W11708403	Stop, Door (black ) (Replaces: 12968202B)		Immediately	$ 14.05
18	W11266639	Frame, Chiller (front) (Replaces: 12945501SP)			$ 256.79
19	12996601	Clip, Bushing Wire (left Door)			$ 10.05
20	WP67006312	Door, Chiller (Replaces: 12945701SP)		Immediately	$ 82.18
21	WP98165	Screw (Replaces: 12990521)			$ 8.00
22	W11636815	Nameplate (for Jfi2589aep3) (Replaces: 13062401)			$ 43.19
22	12848704	Nameplate (for Jfi2589aes3)			$ 60.12
23	12978064SQ	Door, Right (stainless)	Appelez-nous	-
24	12977501	Bin, Lower Door	Appelez-nous	-
25	12962106	Waterline, Door			$ 126.75
