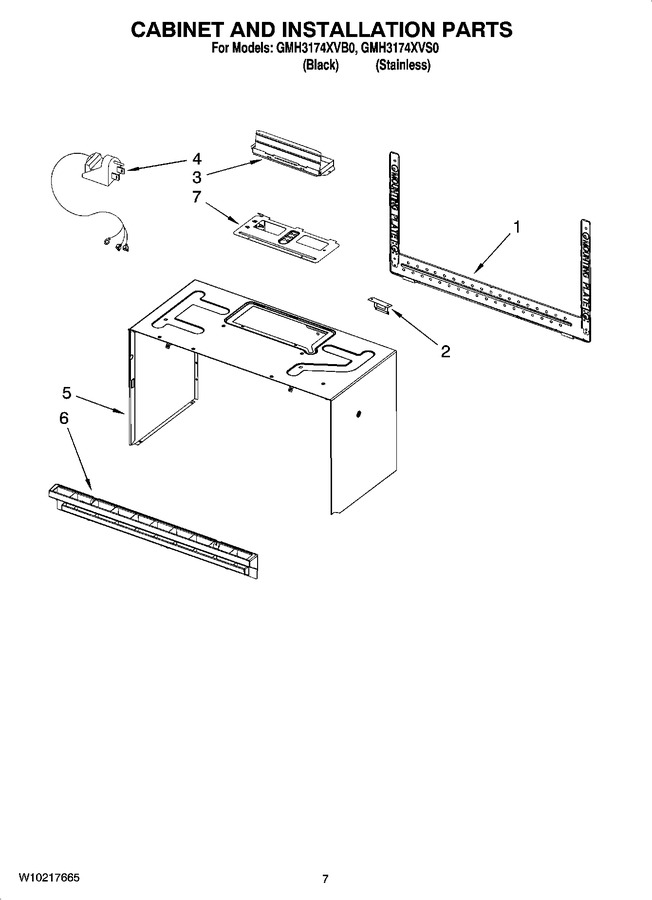

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10269225 | Plate, Mounting (Replaces: 8206315) |
|
$ 80.73 | |||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 37.20 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 73.04 | ||||
| 4 | 8206388 | Cord, Power |
|
$ 91.10 | |||||
| 5 | W10210839 | Case, Outer (black) |
|
- | |||||
| 6 | W10259625 | Grille, Vent (black) (Replaces: 8206391) |
|
Immediately | $ 74.78 | ||||
| 6 | 8206393 | Grille, Vent (stainless) |
|
$ 108.94 | |||||
| 7 | W10210832 | Plate, Damper |
|
$ 6.68 | |||||
| W10470168 | Harness Wire, Ntc (Replaces: W10163439) |
|
$ 42.74 | ||||||
| 8205871 | Template, Upper |
|
$ 24.66 | ||||||
| 8205948 | Installation, Hardware |
|
$ 26.90 | ||||||
| WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 13.35 | |||||
| W10212887 | Main Harness |
|
- | ||||||
| W10163438 | Ground Wire Assy |
|
- | ||||||
| 8206415 | H.v. Wire Assy |
|
$ 39.87 | ||||||
| W10107760 | Grnd Wire, Filter |
|
- | ||||||
| W10163435 | Hdlmp/tt Wire Assy |
|
- | ||||||
| W10539842 | Hv Trnsfmr Wr Assy (Replaces: W10163436) |
|
$ 16.70 |
