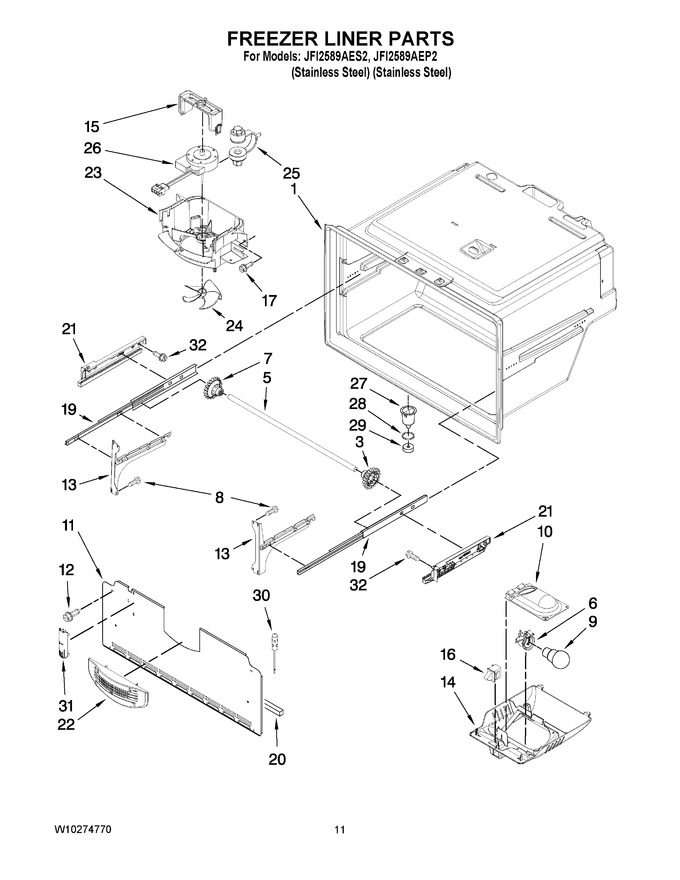

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Asevice Able Part) |
|
- | |||||
| 3 | 12002497 | Gear (left) |
|
Immediately | $ 22.51 | ||||
| 5 | W11028221 | Shaft-rack (Replaces: 12812903WD) |
|
$ 33.24 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701) |
|
Immediately | $ 13.87 | ||||
| 7 | 12002497 | Gear, (right) |
|
Immediately | $ 22.51 | ||||
| 8 | WP98165 | Screw, Bracket (Replaces: 12990521) |
|
$ 8.57 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: W10194422) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 12476401SP) |
|
$ 90.11 | |||||
| 11 | 12935801 | Cover, Evap |
|
- | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | WPW10330993 | Bracket, Door Slide (right) (Replaces: W10122148) |
|
$ 166.09 | |||||
| 13 | WPW10330991 | Bracket, Door Slide (left) (Replaces: W10122147) |
|
$ 164.31 | |||||
| 14 | 13027902SP | Module, Freezer Light |
|
- | |||||
| 15 | W11712696 | Clip, Fan Motor (Replaces: 12956601) |
|
Immediately | $ 12.24 | ||||
| 16 | W11445850 | Switch, Rocker (Replaces: 12466111SP) |
|
Immediately | $ 52.62 | ||||
| 17 | WP98165 | Screw, Fan Shroud To Basket (Replaces: 12990504) |
|
$ 8.57 | |||||
| 19 | W11658402 | Slide-drawer (2) (Replaces: W10120018) |
|
Immediately | $ 127.51 | ||||
| 20 | W11451451 | Gasket, Foam (Replaces: A3189397) |
|
$ 13.03 | |||||
| 21 | WPW10284683 | Adapter (right) (Replaces: W10159939) |
|
$ 217.98 | |||||
| 21 | WPW10284682 | Adapter (left) (Replaces: W10159938) |
|
Immediately | $ 141.38 | ||||
| 22 | W11176847 | Grille, Air (Replaces: 12959901) |
|
$ 124.16 | |||||
| 23 | W11700329 | Shroud, Evap Fan (Replaces: 12951401) |
|
Immediately | $ 61.20 | ||||
| 24 | WP67006337 | Blade, Fan (evaporator) (Replaces: 12986101) |
|
Immediately | $ 90.45 | ||||
| 25 | W11676465 | Grommet, Fan Motor (2) (Replaces: 12951101) |
|
Immediately | $ 15.56 | ||||
| 26 | W10850438 | Motor, Evaporator Fan (Replaces: W10162809) |
|
Immediately | $ 306.39 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 28 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 11.47 | |||||
| 29 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 7.78 | |||||
| 30 | 12002355 | Thermistor Kit |
|
Immediately | $ 47.36 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 8.21 | |||||
| 32 | WP489474 | Screw, Adapter (Replaces: 12990501) |
|
Immediately | $ 8.55 |
