SELECT A DIAGRAM

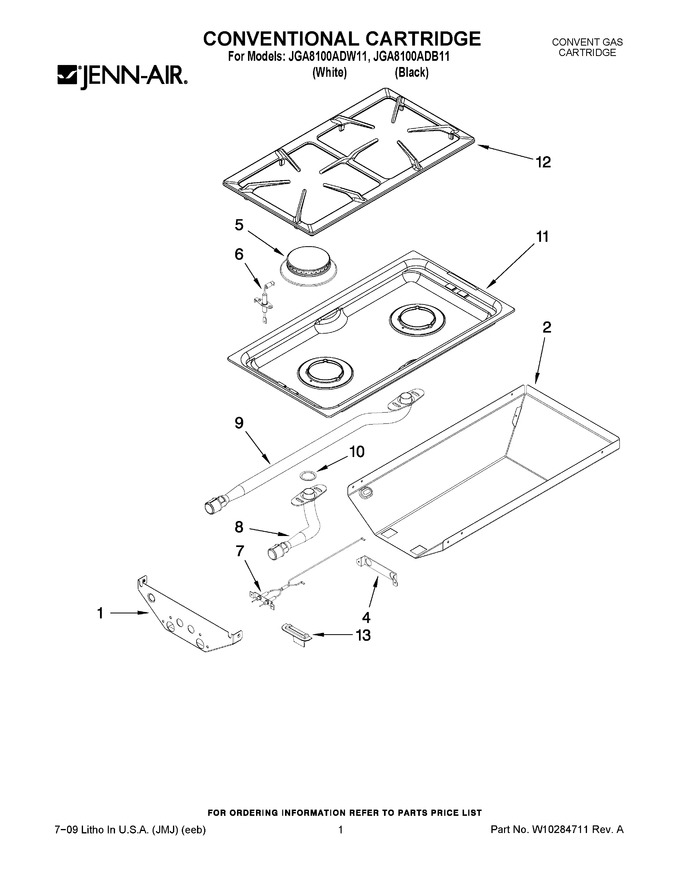

01 - Conventional Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F791-61 | Cartridge, Front |
|
- | |||||
| 2 | 4001F155-61 | Housing, Cartridge |
|
- | |||||
| 4 | 3801F704-51 | Brkt., Venturi |
|
- | |||||
| 5 | WP3403M075-09 | Burner, Head (black) (Replaces: 3403D075-09) |
|
$ 193.59 | |||||
| 5 | 3403D075-29 | Burner, Head (gray) |
|
- | |||||
| 6 | WP74005890 | Ignitor, Burner (Replaces: 7432P120-60) |
|
$ 81.27 | |||||
| 7 | 74004053 | Block, Terminal W/ Ingnitor Wires (Replaces: 7432P100-60) |
|
Immediately | $ 26.94 | ||||
| 8 | WP7538P008-60 | Venturi, Front (Replaces: 7538P008-60) |
|
$ 213.22 | |||||
| 9 | WP7538P009-60 | Venturi, Rear (Replaces: 7538P009-60) |
|
$ 241.95 | |||||
| 10 | WP74005893 | Seal, Brass (Replaces: 7212P067-60) |
|
$ 6.64 | |||||
| 11 | WP2001F175-09 | Top, Sealed (black) (Replaces: 2001F175-09) |
|
$ 363.66 | |||||
| 11 | 2001F175-81 | Top, Sealed (gray) |
|
- | |||||
| 12 | WP7518P483-60 | Grate (black) (Replaces: 7518P476-60) |
|
$ 217.85 | |||||
| 12 | 7518P475-60 | Grate (gray) |
|
- | |||||
| 13 | 7724P179-60 | Guard, Corner |
|
$ 27.72 |
