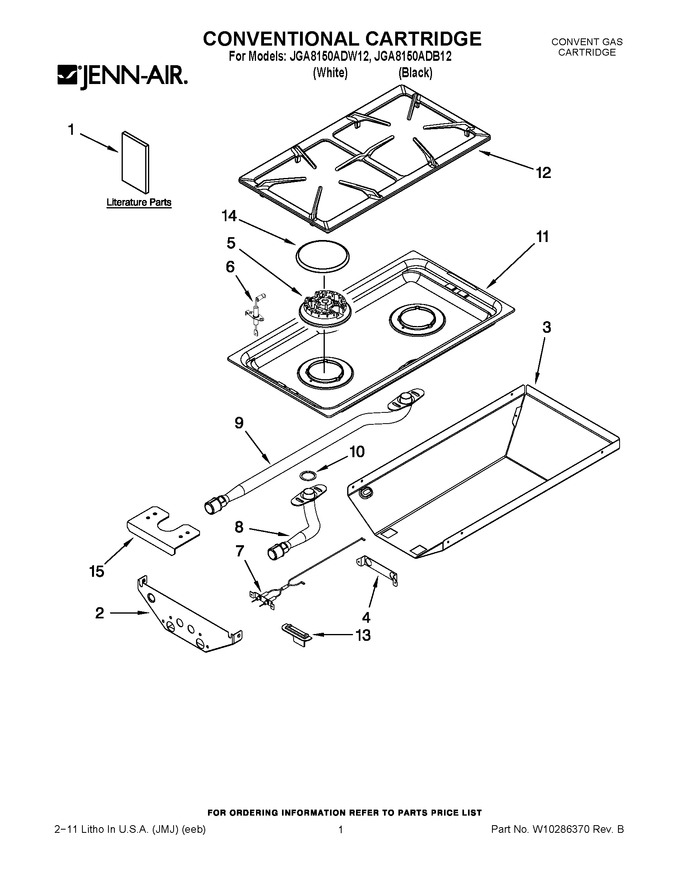

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Conventional Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10171346 | Manual, Use & Care |
|
- | |||||
| 2 | 4005F792-61 | Cartridge, Front |
|
- | |||||
| 3 | 4001F155-61 | Housing, Cartridge |
|
- | |||||
| 4 | 3801F894-51 | Brkt., Venturi |
|
- | |||||
| 5 | 7540P046-60 | Burner, Base |
|
$ 154.41 | |||||
| 6 | WPY0316773 | Ignitor, Burner (Replaces: 74011790) |
|
$ 41.26 | |||||
| 7 | WP74005890 | Block, Terminal W/ Ingnitor Wires (Replaces: 7432P120-60) |
|
$ 81.27 | |||||
| 8 | 7538P021-60 | Venturi, Front |
|
- | |||||
| 9 | 7538P022-60 | Venturi, Rear |
|
- | |||||
| 10 | WP74005893 | Seal, Brass (Replaces: 7212P067-60) |
|
$ 6.64 | |||||
| 11 | 2001F248-81 | Top, Sealed (black) |
|
$ 143.70 | |||||
| 11 | 2001F248-09 | Top, Sealed (white) |
|
$ 142.08 | |||||
| 12 | 7518P341-60 | Grate (black) |
|
- | |||||
| 13 | 7724P179-60 | Guard, Corner |
|
$ 27.72 | |||||
| 14 | 7504P241-60 | Cap, Burner |
|
- | |||||
| 15 | 3801F919-51 | Brkt, Burner |
|
- |
