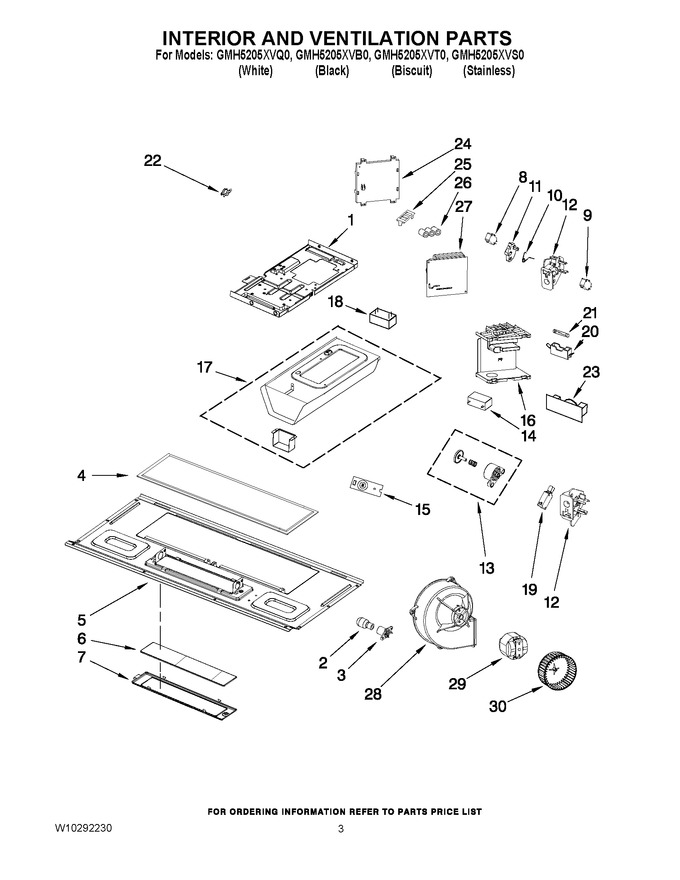

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10286197		Chassis		Appelez-nous	-
2	8206232A		Lamp   (Replaces: 8206232)			Immediately	$ 7.71
3	W10210871		Holder, Lamp			Immediately	$ 6.39
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
5	W10245196		Plate, Bottom				$ 257.07
6	WPW10210875		Glass, Lamp   (Replaces: W10210875)				$ 350.94
7	W10210873		Holder, Glass				$ 5.75
8	W10211972		Switch, Micro V15t16-cz200			Immediately	$ 52.40
9	W10269458		Switch, Micro V15t16-cc200   (Replaces: W10211973)			Immediately	$ 40.11
10	W10156812		Spring, Interlock			Immediately	$ 12.14
11	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
12	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
12	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
13	W10197758		Piston Assembly			Immediately	$ 93.36
14	W11405831		Capacitor, 125 V   (Replaces: W10245191)				$ 44.36
15	W10163422		Thermistor (pcba)				$ 179.70
16	W10282795		Cover, Inverter		Appelez-nous	-
17	W10286203		Plate, Chassis		Appelez-nous	-
18	W10245190		Resistor, Cement		Appelez-nous	-
19	W10211974		Switch, Micro V15t16-cp200			Immediately	$ 60.44
20	W10245194		Holder, Fuse				$ 87.31
21	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
22	W10864742		Thermostat   (Replaces: W10245195)				$ 88.67
23	W10286198		Filter, Main				$ 127.10
24	W10282808		Holder, Inverter		Appelez-nous	-
25	W10286200		Support, Ferrite		Appelez-nous	-
26	8206086		Ferrite		Appelez-nous	-
27	W10217711		Inverter   (Replaces: 8206087)			Immediately	$ 289.63
28	8206076		Housing, Fan				$ 120.45
29	W10286242		Motor, Fan		Appelez-nous	-
30	W10286243		Wheel, Fan		Appelez-nous	-
