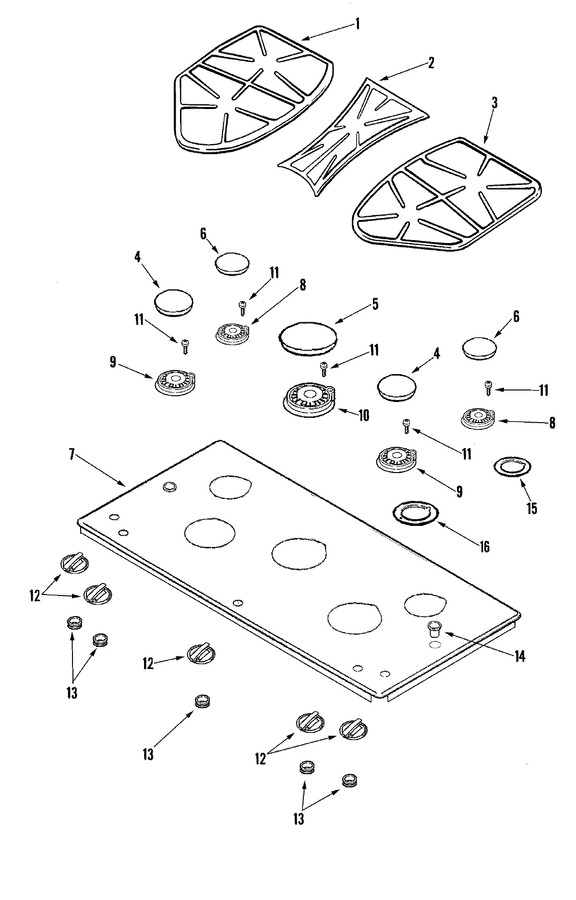

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007988 | Grate (lt-gry) | 10 |
|
- | ||||
| 2 | 74007990 | Grate (ctr-gry) | 10 |
|
- | ||||
| 3 | 74007989 | Grate (rt-gry) | 10 |
|
- | ||||
| 4 | WP74007752 | Cap, Burner (med-gry) (Replaces: 74007752) | 10 |
|
$ 117.56 | ||||
| 5 | WP74007420 | Cap, Burner (lrg-gry) (Replaces: 74007420) | 10 |
|
$ 131.01 | ||||
| 6 | 74007422 | Cap, Burner (smr-gry) | 10 |
|
$ 30.56 | ||||
| 7 | 74008007 | Top Assembly (wht) | 10 |
|
- | ||||
| 8 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 28.34 | |||
| 8 | 74007734 | Burner Assembly (small) | 10 |
|
$ 125.76 | ||||
| 9 | 74007735 | Burner Assembly (lrg) | 10 |
|
Immediately | $ 147.25 | |||
| 9 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 28.34 | |||
| 10 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 28.34 | |||
| 10 | 74007736 | Burner Assembly (x-lrg) | 10 |
|
Immediately | $ 117.07 | |||
| 11 | W11772394 | Screw, Burner Base (Replaces: 74007714) | 10 |
|
Immediately | $ 13.22 | |||
| 12 | WP7733P410-60 | Knob, Burner (chr) (Replaces: 74007733) | 10 |
|
Immediately | $ 24.83 | |||
| 13 | 74010063 | Grommet (wht) | 10 |
|
- | ||||
| 14 | 74007982 | Washer | 10 |
|
$ 6.44 | ||||
| 14 | 74007980 | Grommet, Grate Foot (wht) | 10 |
|
$ 18.96 | ||||
| 14 | 74007983 | Ring, Retaining | 10 |
|
$ 13.45 | ||||
| 15 | 74010651 | Gasket, Fiberglass (sml-bnr) | 10 |
|
$ 69.98 | ||||
| 16 | WP74010652 | Gasket, Fiberglass (Replaces: 74010652) | 10 |
|
$ 86.00 |
