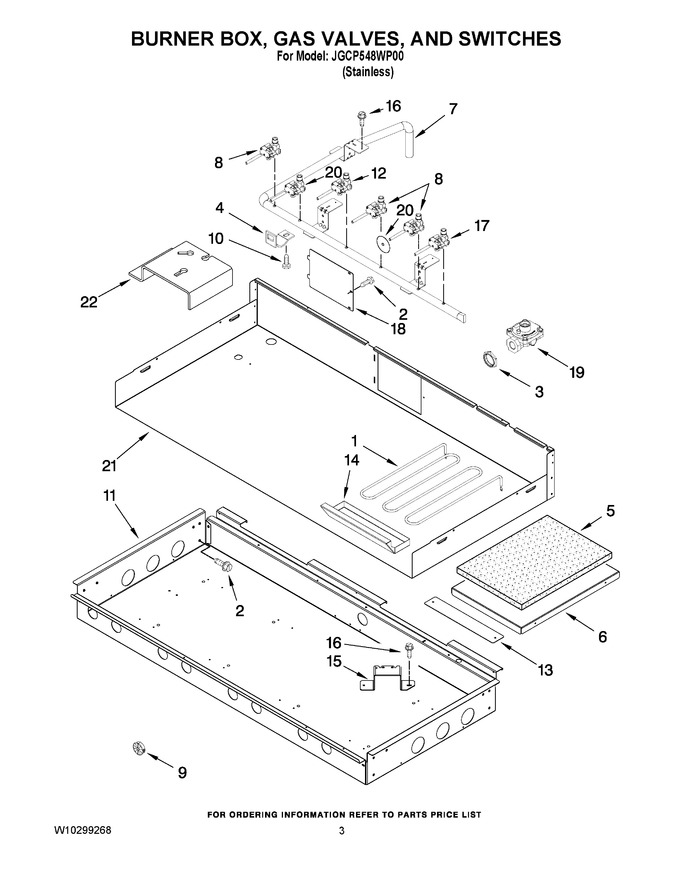

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193014		Element, Griddle				$ 323.46
2	W10145620		Tray, Element Griddle		Appelez-nous	-
3	W10115953		Nut, Burner				$ 9.78
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
6	W10246074		Tray, Insulation Griddle		Appelez-nous	-
7	W10115896		Manifold				$ 104.48
8	W10250407		Valve, Gas (lr & Cf & Rr)		Appelez-nous	-
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	W10250424		Burner Box		Appelez-nous	-
12	WPW10385583		Valve, Gas (cr)   (Replaces: W10284547)			Immediately	$ 332.10
13	W10250433		Cover, Plate		Appelez-nous	-
14	W10276497		Drip Tray, Griddle				$ 404.03
15	W10115929		Bracket, Burner (lf,lr,cf,rf & Rr)		Appelez-nous	-
15	W10280796		Bracket, Burner (cr)		Appelez-nous	-
16	4450800		Screw				$ 13.47
17	WPW10371235		Valve, Gas (lf & Rf)   (Replaces: W10250410)			Immediately	$ 268.41
18	W10115843		Cover, Ignition		Appelez-nous	-
19	WP9759091		Regulator,pressure   (Replaces: 9759091)			Immediately	$ 340.43
20	W10189177		Seal, Switch Cover				$ 10.00
21	W10189155		Cover, Burner Box		Appelez-nous	-
22	8285790		Bracket, Mounting Orifice				$ 85.85
NI	W10115908		Tubing, Gas (lf & Rf - High)		Appelez-nous	-
NI	W10115910		Tubing, Gas (lr & Cf & Rr)				$ 176.20
NI	W10115911		Tubing, Gas (lf & Rf - Low)				$ 188.34
NI	W10280797		Valve, Gas (cr)		Appelez-nous	-
