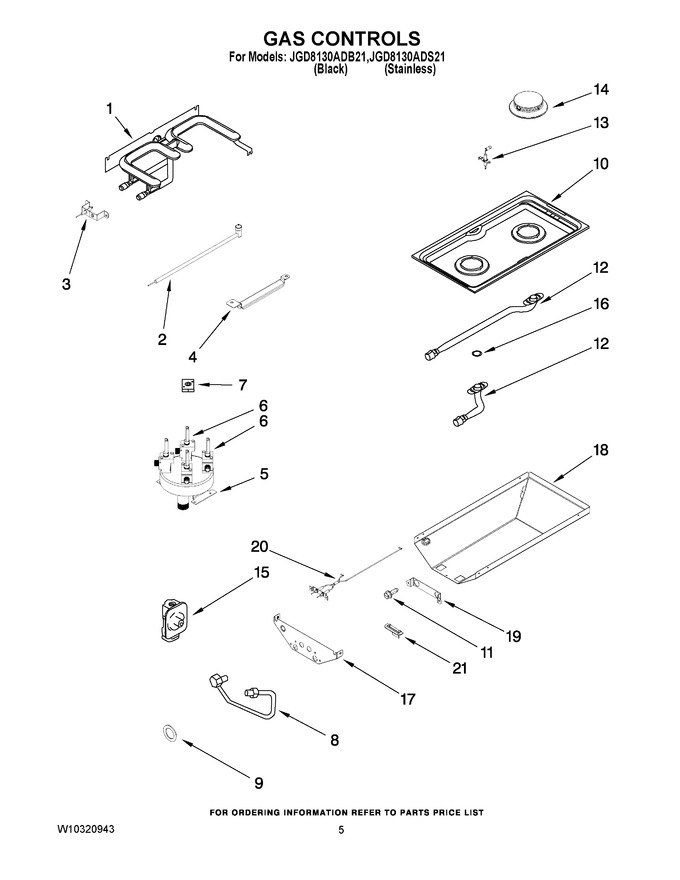

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7505P290-60		E-burner, Grill		Appelez-nous	-
2	WP74006072		Ignitor, E-burner   (Replaces: 7432P112-60)			Immediately	$ 112.83
3	WP74006073		Ignitor, Ground Assembly   (Replaces: 7432P116-60)				$ 99.98
4	3604F337-50		Shield, Ignitor Bracket				$ 55.94
5	7513P489-60		Manifold				$ 276.52
6	WP74006156		Valve, Top Burner (right)   (Replaces: 7502P372-60)				$ 289.53
6	WPY04100188		Valve, Top Burner (left)   (Replaces: 7502P371-60)				$ 259.99
7	WP74006956		Switch, Valve (double)   (Replaces: 7403P692-60)				$ 155.43
7	WP74006955		Switch, Valve (single)   (Replaces: 7403P691-60)				$ 146.31
8	7506P285-60		Tube, Burner (right Rear)				$ 108.58
8	7506P262-60		Tube, Burner (right Front)				$ 116.52
8	7506P261-60		Tube, Burner (left Front)				$ 107.32
8	7506P263-60		Tube, Burner (left Rear)				$ 116.52
9	7109P055-60		Washer		Appelez-nous	-
10	WP2001F175-09		Cartridge, Top   (Replaces: 2001F175-09)				$ 363.66
11	W10828565		Screw   (Replaces: 7101P635-60)				$ 7.85
12	WP7538P008-60		Venturi, Front   (Replaces: 7538P008-60)				$ 213.22
12	WP7538P009-60		Venturi, Rear   (Replaces: 7538P009-60)				$ 241.95
13	74004053		Ignitor, Top Burner   (Replaces: 7432P100-60)			Immediately	$ 26.94
14	WP3403M075-10		Assy., Burner   (Replaces: 3403M075-10)			Immediately	$ 160.12
15	W11106948		Reg., Pressure   (Replaces: 7510P075-60)			Immediately	$ 238.90
16	WP74005893		Seal, Brass   (Replaces: 7212P067-60)				$ 6.64
17	4005F791-80		Cover, Cartridge				$ 35.38
18	4001F155-80		Housing, Cartridge		Appelez-nous	-
19	3801F704-51		Bracket, Venturi Align		Appelez-nous	-
20	WP74005890		Assembly, Ignitor/block   (Replaces: 7432P120-60)				$ 81.27
21	7724P179-60		Guard, Corner				$ 27.72
NI	74006048		Kit, Lp Orifice (4 Burner)   (Replaces: 5700A882-60)				$ 41.66
