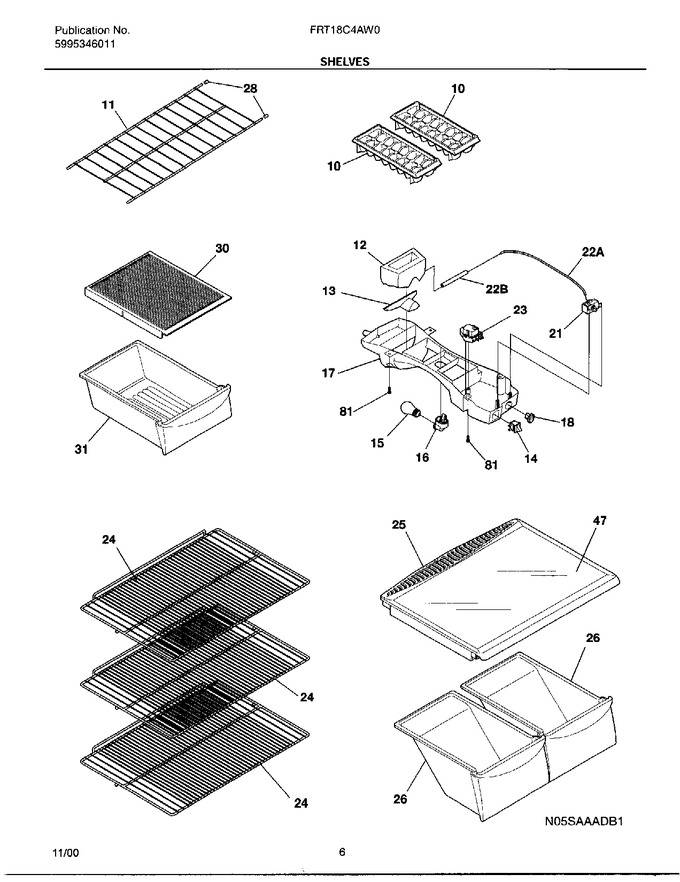

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.74
11	240358002		Shelf-freezer,full Width		Appelez-nous	-
12	240362501		Diffuser-air,top		Appelez-nous	-
13	240362601		Diffuser-air,bottom			Immediately	$ 46.46
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	241559801		Socket-light/lamp   (Replaces: 5303289050)				$ 80.75
17	240352701		Control Box		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
24	240360908		Shelf,sliding ,wire   (Replaces: 240360901)				$ 105.53
25	242201802		Cover-crisper Pan,w/ Beam ,less Insert   (Replaces: 240364701)			Immediately	$ 136.78
26	240337101		Pan-crisper,w/o Graphics ,white ,(2)				$ 109.78
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
30	240361801		Hanger-meat Pan,drop Thru		Appelez-nous	-
31	240530811		Pan-meat,w/o Graphics ,white   (Replaces: 240354201)			Immediately	$ 150.86
47	240350608		Insert-pan Cover,glass			Immediately	$ 50.55
81	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 67.73
22B	218731105		Tube,pvc ,white ,@ Air Diffuser ,insulator		Appelez-nous	-
F14	5309918806		Switch-light/lamp			Immediately	$ 24.41
F21	5304418228		Control-temperature				$ 188.06
F23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 31.33
NI	240392601		Seal-diffuser				$ 6.57
NI	240388701		Wiring Harness,control Box			Immediately	$ 88.99
NI	5304455649		Screw   (Replaces: 5303001259)				$ 18.90
NI	5303299664		Spacer-shelf				$ 26.78
