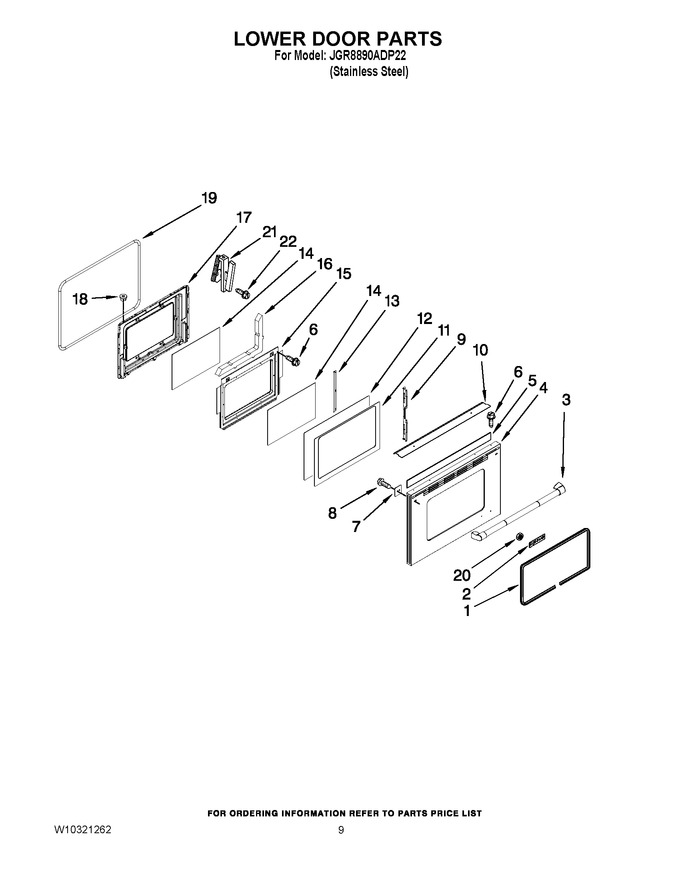

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008916 | Gasket, Window (Replaces: 7201P140-60) |
|
$ 134.37 | |||||
| 2 | 7719P087-60 | Nameplate |
|
- | |||||
| 3 | WP7701P475-60 | Handle, Door (Replaces: 7701P475-60) |
|
$ 264.54 | |||||
| 4 | 7760P158-60 | Panel, Door |
|
$ 171.57 | |||||
| 5 | WP74010043 | Insulation, Foil (Replaces: 7002P427-60) |
|
$ 70.53 | |||||
| 6 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.81 | |||||
| 7 | W10167659 | Plate, Back (handle Mtg.) |
|
$ 22.07 | |||||
| 8 | 7101P668-60 | Screw |
|
- | |||||
| 9 | 3804F265-45 | Retainer, Glass Support |
|
$ 9.40 | |||||
| 10 | 3604F441-51 | Shield, Door |
|
- | |||||
| 11 | 7902P754-60 | Glass, Outer Door |
|
- | |||||
| 12 | 7902P468-60 | Glass, Door |
|
- | |||||
| 13 | 3801F886-51 | Bracket, Inner Glass |
|
$ 38.25 | |||||
| 14 | 74003645 | Glass, Inner (Replaces: 7902P436-60) |
|
Immediately | $ 201.23 | ||||
| 15 | 3601F373-51 | Baffle, Door |
|
$ 256.44 | |||||
| 16 | 7002P246-60 | Insulation |
|
$ 58.49 | |||||
| 17 | 2402W312-19 | Liner, Door |
|
$ 144.50 | |||||
| 18 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 10.57 | ||||
| 19 | WPW10162384 | Gasket, Door (Replaces: W10162384) |
|
Immediately | $ 92.59 | ||||
| 20 | 7103P166-60 | Palnut |
|
$ 16.70 | |||||
| 21 | 74011475 | Hinge, Door (Replaces: 7106P143-60) |
|
Immediately | $ 120.25 | ||||
| 22 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.56 |
