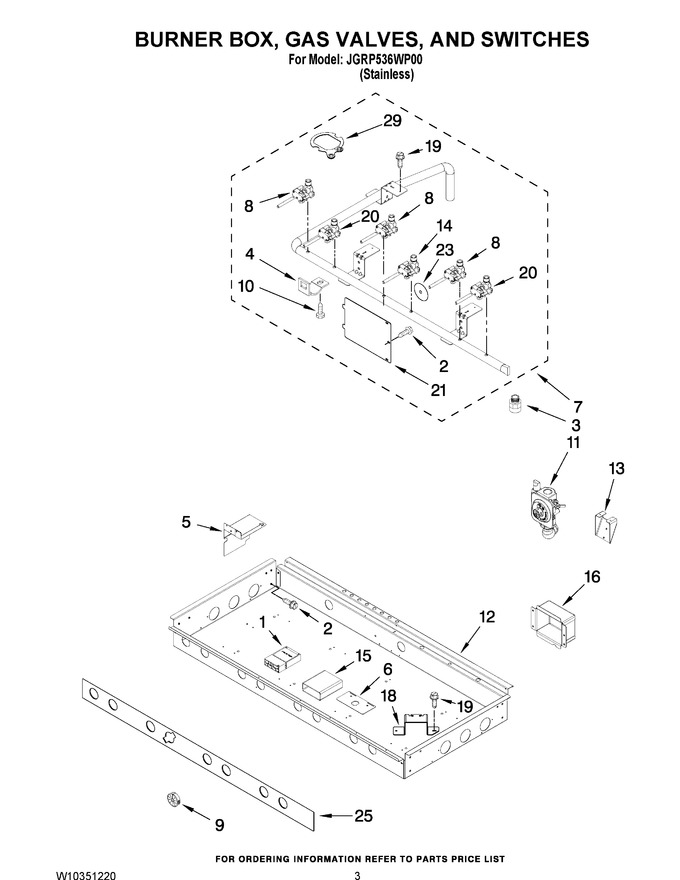

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 238.24
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
3	4453115		Adapter, Female				$ 126.70
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10325491		Bracket, Spark Module		Appelez-nous	-
6	W10115855		Holder, Strain Relief		Appelez-nous	-
7	W10145508		Manifold		Appelez-nous	-
8	W10326645		Valve, Single Lr,cf,rr				$ 162.52
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	W11193822		Regulator, Pressure   (Replaces: W10145584)			Immediately	$ 297.57
12	W10272892		Burner Box		Appelez-nous	-
13	W10308042		Bracket, Pressure Regulator		Appelez-nous	-
14	WPW10385583		Valve, Single (cr)   (Replaces: W10305286)			Immediately	$ 332.10
15	8287102		Insulation, Spark Module		Appelez-nous	-
16	W10308051		Box, Broil		Appelez-nous	-
18	W10115929		Bracket, Burner (rf,rr,cf,lr,lf)		Appelez-nous	-
18	W10280796		Bracket, Burner (cr)		Appelez-nous	-
19	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
20	WPW10371235		Valve, Gas (lf & Rf)   (Replaces: W10305287)			Immediately	$ 268.41
21	W10115843		Cover, Ignition		Appelez-nous	-
23	W10189177		Seal, Switch Cover				$ 10.00
25	W11688578		Insulation   (Replaces: W10145622)		Appelez-nous	-
29	8286930		Gasket, Orifice				$ 95.73
NI	W10145481		Tubing, Gas (lf - Left)				$ 70.40
NI	W10276501		Tubing, Gas (rr)		Appelez-nous	-
NI	W10145484		Tubing, Gas (rf - Right)		Appelez-nous	-
NI	W10145480		Tubing, Gas (lf - Right)		Appelez-nous	-
NI	W10145479		Tubing, Gas (lr)		Appelez-nous	-
