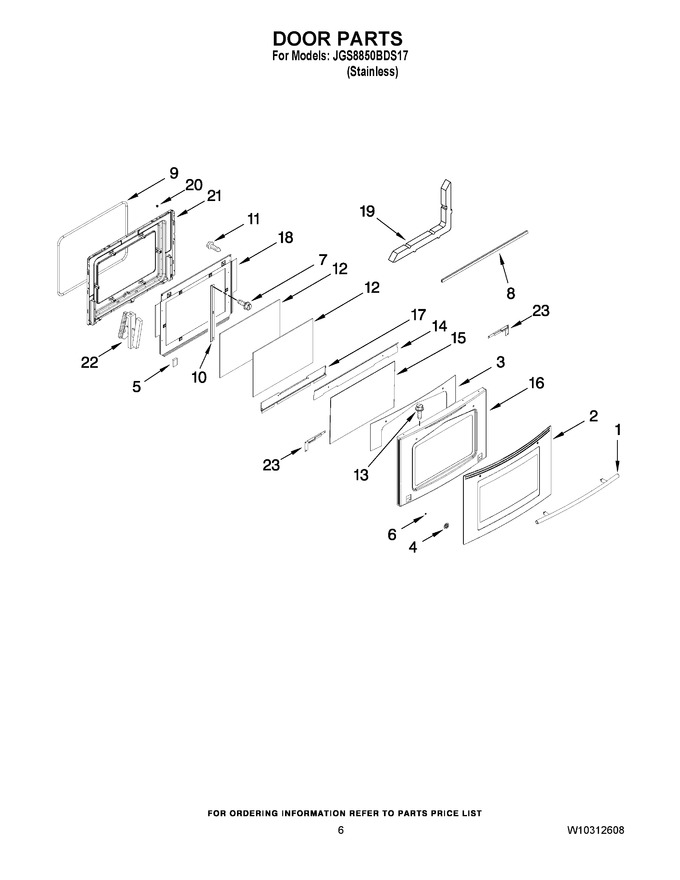

04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74008625 | Handle, Door (Replaces: 7701P473-60) |
|
$ 267.92 | |||||
| 2 | W10185621 | Glass-door |
|
$ 268.43 | |||||
| 3 | 7002P465-60 | Insulation, Foil |
|
- | |||||
| 4 | 7109P082-60 | Washer (handle) |
|
- | |||||
| 5 | 7109P082-60 | Spacer, Rubber |
|
- | |||||
| 6 | WP3400029 | Nut (Replaces: 7103P176-60) |
|
Immediately | $ 8.19 | ||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 8 | 7201P143-60 | Gasket, Door Top |
|
$ 16.81 | |||||
| 9 | WPW10162384 | Gasket, Door (Replaces: W10162384) |
|
Immediately | $ 86.23 | ||||
| 10 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 11 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 14.23 | |||||
| 12 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 13 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 14 | 3604F418-51 | Shield, Door |
|
$ 77.46 | |||||
| 15 | 7902P768-60 | Glass, Door (inner Coated) |
|
- | |||||
| 16 | 3603F075-70 | Frame, Door |
|
$ 187.06 | |||||
| 17 | 3804F317-80 | Retainer, Glass |
|
$ 65.61 | |||||
| 18 | 3601F373-51 | Baffle, Door |
|
$ 284.93 | |||||
| 19 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 20 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 11.74 | ||||
| 21 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 22 | 74011475 | Hinge, Door (Replaces: 7106P143-60) |
|
Immediately | $ 130.52 | ||||
| 23 | 3804F307-51 | Retainer, Glass (right Side) |
|
$ 109.75 | |||||
| 23 | 3804F308-51 | Retainer, Glass (left Side) |
|
- |
