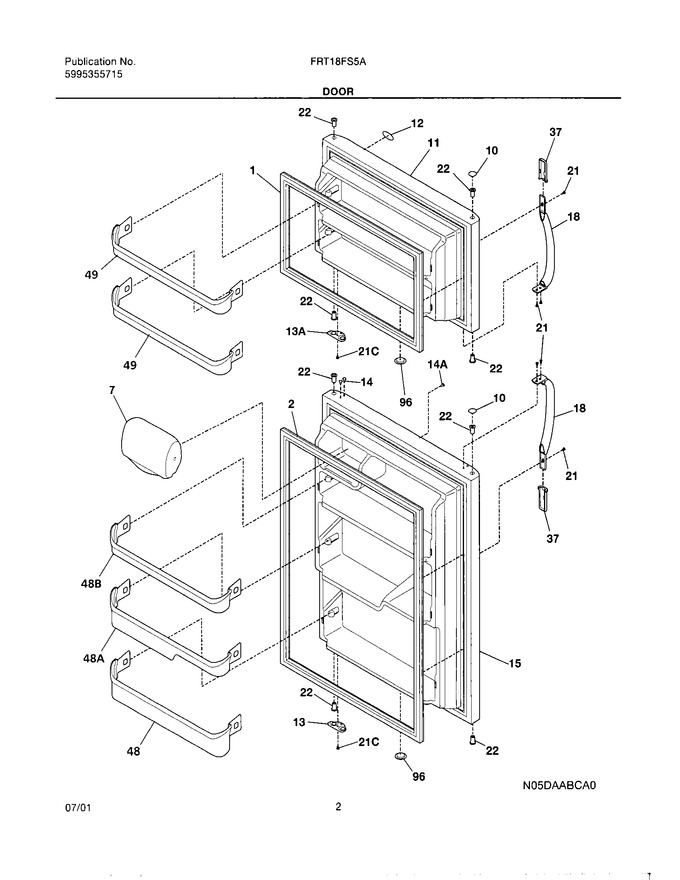

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240337712		Door-dairy,w/o Graphics ,clear   (Replaces: 240337703)			Immediately	$ 40.45
10	240381301		Plug-button,hinge Brg Hole ,white ,(2)			Immediately	$ 21.06
11	240410201		Door-frzr,white ,complete Assy				$ 518.69
12	241808601		Label-nameplate,white   (Replaces: 240415201)				$ 14.10
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 16.85
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 20.22
15	241798501		Door-refr,white ,complete Assy   (Replaces: 240410301)			Immediately	$ 603.65
18	218668001		Handle-door, White			Immediately	$ 73.51
21	5304515677		Screw,truss Hd Quad ,10-16 X .500   (Replaces: 240383401)			Immediately	$ 21.37
22	5304507146		Bearing-hinge,natural Color ,(8)   (Replaces: 240311201)			Immediately	$ 8.43
37	215870629		Trim-handle,2.47`` ,white ,w/satin Al Band				$ 62.21
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 58.19
49	240495804		Bin-door,pseudo ,frzr   (Replaces: 240337801)			Immediately	$ 48.10
96	240345501		Plug-foam Hole,white		Appelez-nous	-
13A	240312414		Door Stop,white ,frzr   (Replaces: 240312404)				$ 21.26
14A	240494001		Plug-button,screw Type ,white   (Replaces: 240428301)			Immediately	$ 20.22
21C	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 15.75
48A	240337901		Bin-door,ref			Immediately	$ 57.92
48B	240338001		Bin-door,ref			Immediately	$ 38.84
F1	241872503		Gasket-frzr Door,white ,magnetic   (Replaces: 240370905)			Immediately	$ 152.96
F2	242193213		Gasket-refr Door,white ,magnetic   (Replaces: 240370906)			Immediately	$ 211.36
NI	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
