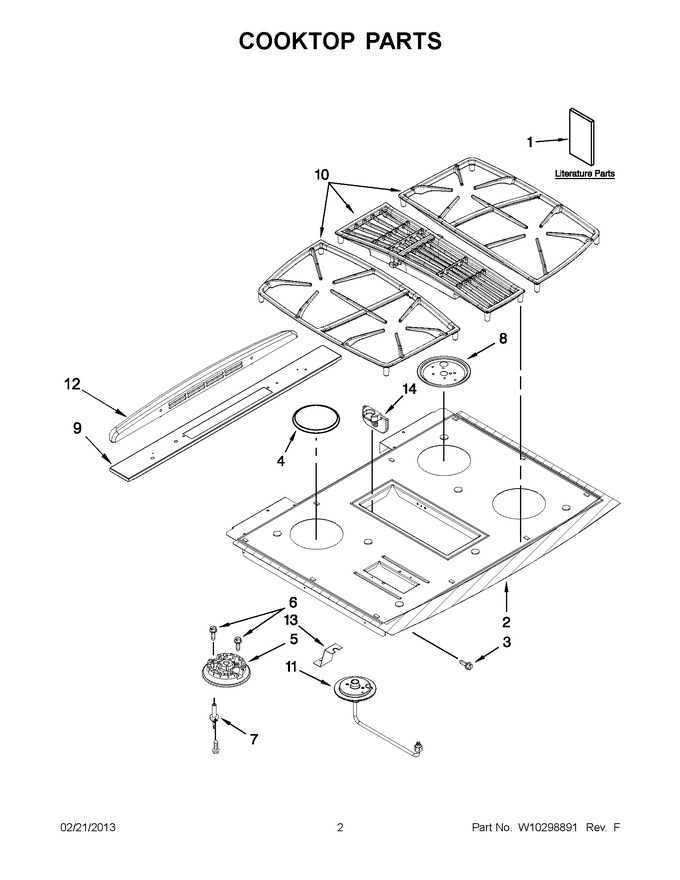

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8101P701-60 Installation Instructions Appelez-nous -
1 8113P752-60 Use & Care Guide Appelez-nous -
1 8119P164-60 Wiring Diagram Appelez-nous -
1 W10065852 Tips, Safe Cooking (french) Appelez-nous -
1 9762761 Tips, Safe Cooking (english) Appelez-nous -
1 8101P725-60 Instructions Lp Conversion Appelez-nous -
1 8106P068-60 Card, Flow Tester Special Order $ 6.65

1 8101P185-60 Instructions, Ducting Appelez-nous -
2 W10199504 Top, Main (black) Appelez-nous -
2 W10199505 Top, Main (white) Special Order $ 636.94

3 WP8273062 Screw   (Replaces: 7101P606-60) In-Stock Immediately $ 7.91

4 WP8284669 Cap, Burner (black (right Rear))   (Replaces: 7504P202-60) In-Stock Immediately $ 75.59

4 7504P165-60 Cap, Burner (black (left Rear)) Appelez-nous -
4 7504P243-60 Cap, Burner (black, Dual Outer) Appelez-nous -
4 7504P204-60 Cap, Burner (black (right Front)) Appelez-nous -
4 7504P242-60 Cap, Burner (black, Dual Inner) Appelez-nous -
5 7505P349-60 Assembly, Burner (left Front) Appelez-nous -
5 7505P339-60 Assembly, Burner (right Rear) Special Order $ 57.66

5 74007736 Assembly, Burner (right Front)   (Replaces: 7505P306-60) In-Stock Immediately $ 117.07

5 74007735 Assembly, Burner (left Rear)   (Replaces: 7505P305-60) In-Stock Immediately $ 114.18

6 WP8273062 Screw   (Replaces: 7101P606-60) In-Stock Immediately $ 7.91

7 WP74009336 Ignitor, Cooktop   (Replaces: 7432P121-60) In-Stock Immediately $ 27.00

8 3424F039-09 Bowl, Dual Special Order $ 14.11

9 4005F789-09 Trim, Cover Special Order $ 109.65

10 7772P055-60 Grill (center) Appelez-nous -
10 7518P338-60 Grate (left) Appelez-nous -
10 7518P332-60 Grate (right) Special Order $ 123.57

11 74011741 Holder, Orifice (right Rear)   (Replaces: 7527P085-60) Special Order $ 193.47

11 WP7527P061-60 Holder, Orifice (left Front)   (Replaces: 7527P061-60) Special Order $ 113.03

11 7527P087-60 Holder, Orifice (right Front) Special Order $ 70.80

11 WP7527P086-60 Holder, Orifice (left Rear)   (Replaces: 7527P086-60) Special Order $ 189.78

12 7724P200-60 Cover, Vent Special Order $ 88.44

13 3801F681-45 Bracket, Orifice Special Order $ 7.82

14 74010860 Locator, Grate   (Replaces: 8008P075-60) Special Order $ 10.57


    View Diagram in Separate Window     Print Icon   Print Part List
