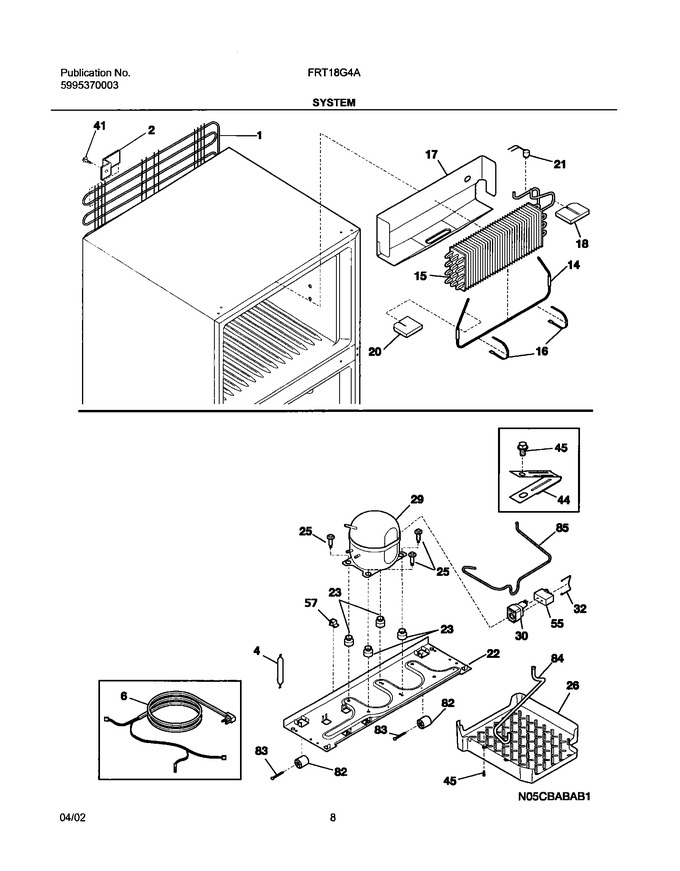

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Doors
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000296 | Bracket,condenser Mtg ,(4) |
|
$ 30.20 | |||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 66.47 | ||||
| 17 | 241801301 | Trough-drain (Replaces: 240434002) |
|
$ 71.62 | |||||
| 18 | 240362301 | Insulation Block,rh |
|
- | |||||
| 20 | 240362401 | Insulation Block,lh |
|
- | |||||
| 22 | 240330001 | Plate-compr Mtg |
|
$ 94.87 | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 47.25 | |||||
| 25 | 240491501 | Screw-compressor Mtg,hex Washer Head ,1/4-28 X 1.16,shoulder,typ Cf |
|
- | |||||
| 26 | 241920605 | Pan-defrost Drain (Replaces: 240332603) |
|
$ 59.73 | |||||
| 32 | 218740800 | Clamp,elec Cont Mtg ,compressor |
|
$ 72.45 | |||||
| 41 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 44 | 5303001199 | Clamp |
|
$ 73.24 | |||||
| 45 | 218897001 | Screw,hex Washer Head ,8-32 X 1/4 |
|
$ 4.40 | |||||
| 57 | 240403601 | Clip-wiring Harness |
|
- | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 57.30 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin (Replaces: 5303316859) |
|
Immediately | $ 39.27 | ||||
| 84 | 240500801 | Tube-drain,lower |
|
$ 72.45 | |||||
| 85 | 240346201 | Tube-connector,suction |
|
- | |||||
| F1 | 240406404 | Condenser,static |
|
- | |||||
| F14 | 5303918208 | Defrost Heater Kit |
|
Immediately | $ 121.28 | ||||
| F15 | 5303918274 | Evaporator Kit (Replaces: 5303918250) |
|
Immediately | $ 470.74 | ||||
| F21 | 5303918202 | Thermostat-defrost,kit |
|
Immediately | $ 22.46 | ||||
| F29 | 5304511983 | Compressor,r134a ,w/o Electricals (Replaces: 218846902) |
|
$ 746.51 | |||||
| F30 | 5304491944 | Starter/overload Assy (Replaces: 218721103) |
|
$ 132.69 | |||||
| F4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 35.19 | ||||
| F55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909901) |
|
Immediately | $ 39.31 | ||||
| F6 | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 88.99 | ||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 15.75 | ||||
| NI | 5303918234 | Hot Tube Repair Kit,service |
|
$ 585.53 | |||||
| NI | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 22.05 | |||||
| NI | 218843800 | Screw,hex Wshr Hd ,8-15a X 0.500 |
|
- | |||||
| NI | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 21.26 | |||||
| NI | 240385401 | Wiring Harness,freezer Section |
|
$ 73.97 | |||||
| NI | 240375401 | Wiring Harness,machine Compt ,w/ Service Cord |
|
$ 143.79 | |||||
| NI | 5303208866 | Spacer,condenser Tube ,black |
|
$ 1.94 | |||||
| NI | 5303918263 | Heat Exchanger Kit,suction Line |
|
$ 512.40 |
