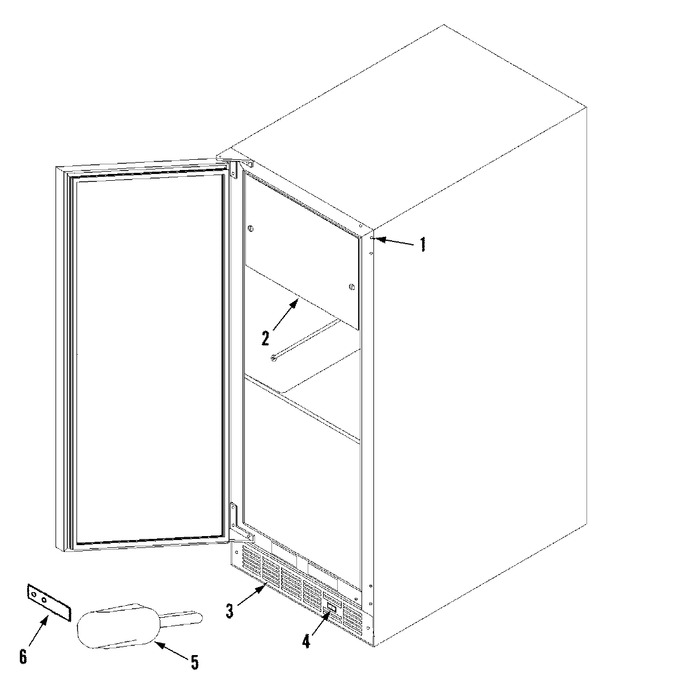

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60001045 | Plug, Hole (wht) | 10 |
|
- | ||||
| 2 | WP179051 | Screw (Replaces: 60001127) | 10 |
|
Immediately | $ 8.42 | |||
| 2 | 60001046 | Escutcheon | 10 |
|
- | ||||
| 3 | 60001128 | Screw (for Blk Grille) | 10 |
|
- | ||||
| 3 | 60001048 | Grille (blk) | 10 |
|
- | ||||
| 4 | 60001050 | Switch, On/off Clean (blk) | 10 |
|
- | ||||
| 5 | W11420408 | Scoop, Ice (Replaces: 60001051) | 10 |
|
$ 28.61 | ||||
| 6 | WP3400088 | Screw (Replaces: 60001055) | 10 |
|
$ 9.54 | ||||
| 6 | 60001152 | Retainer, Clip | 10 |
|
- | ||||
| 7 | 60001179 | Leg Kit, Leveling (incl. 4) | 10 |
|
- |
