View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop

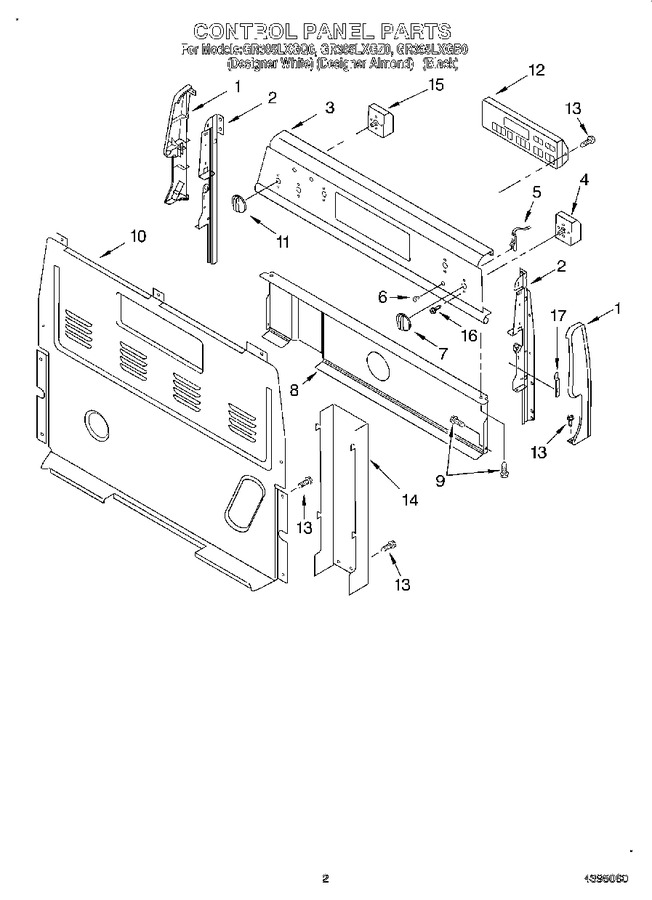

02 - Control Panel
03 - Chassis
04 - Drawer And Broiler
05 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186190 | Endcap (left Hand White) |
|
- | |||||
| 1 | 3186191 | Endcap (right Hand White) |
|
- | |||||
| 1 | 3186192 | Endcap, Left Hand (almond) |
|
- | |||||
| 1 | 3186193 | Endcap (right Hand Almond) |
|
- | |||||
| 1 | 3186188 | Endcap, Left Hand (black) |
|
- | |||||
| 1 | 3186189 | Endcap, Right Hand (black) |
|
- | |||||
| 2 | 3186199 | Support, Endcap (right Hand) |
|
- | |||||
| 2 | 3186198 | Support, Endcap (left Hand) |
|
- | |||||
| 3 | 8053501 | Panel, Backguard (almond) |
|
- | |||||
| 3 | 8053500 | Panel, Backguard (white) |
|
- | |||||
| 3 | 8053499 | Panel, Backguard (black) |
|
- | |||||
| 4 | WP3148952 | Switch, Infinite (right Front) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 4 | WP3149400 | Switch, Infinite (right Rear) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 5 | 313102 | Light, Ind. (surface Unit (2)) |
|
$ 66.48 | |||||
| 5 | 8053632 | Light, Indicator (accusimmer) |
|
- | |||||
| 6 | WP3196068 | Lens, Light (3) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP3196231 | Knob, Infinite (4) (black) (Replaces: 3196231) |
|
Immediately | $ 22.00 | ||||
| 7 | 3196233 | Knob, Infinite (4) (almond) |
|
$ 15.63 | |||||
| 7 | 3196232 | Knob, Infinite (4) (white) |
|
$ 16.71 | |||||
| 8 | 3196083 | Shield, Heat |
|
- | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.41 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 3195163) |
|
$ 219.04 | |||||
| 11 | 8053475 | Knob, Accusimmer (black) |
|
- | |||||
| 11 | 8053476 | Knob, Accusimmer (white) |
|
$ 19.09 | |||||
| 11 | 8053477 | Knob, Accusimmer (almond) |
|
- | |||||
| 12 | 8053444 | Control, Range (white) |
|
- | |||||
| 12 | 8053445 | Control, Range (almond) |
|
- | |||||
| 12 | 8053443 | Control, Range (black) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WPW10326122 | Box, Cover (Replaces: 3195133) |
|
$ 139.60 | |||||
| 15 | 8053511 | Selector, Accusim |
|
- | |||||
| 16 | 3196171 | Screw |
|
- | |||||
| 17 | 3196200 | Clip, Spring (2) |
|
$ 10.45 |
