Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10016370 Trim, Top (white) Special Order $ 79.85

1 W10016380 Trim, Top (black) Special Order $ 80.76

1 W10016450 Trim, Top (biscuit) Special Order $ 81.21

1 W10016420 Trim, Top (stainless Steel) Appelez-nous -
2 WP3196164 Screw   (Replaces: 3196164) In-Stock Immediately $ 11.03

3 WPW10202216 Handle, Door (white)   (Replaces: 8522444) Special Order $ 370.67

3 8522445 Handle, Door (biscuit) Appelez-nous -
3 WPW10202217 Handle, Door (black)   (Replaces: 3195922) Special Order $ 270.65

4 WP9761344 Liner, Door   (Replaces: 9761344) In-Stock Immediately $ 372.89

5 8522414 Seal, Window Special Order $ 160.59

6 WP8053948 Glass, Inner (2)   (Replaces: 9758162) Special Order $ 178.28

7 WPW10316950 Frame, Glass   (Replaces: 3186289) In-Stock Immediately $ 90.09

8 WPW10278991 Insulation, Door   (Replaces: 8272618) In-Stock Immediately $ 101.37

9 W11539580 Retainer, Insul.   (Replaces: 9761357) Special Order $ 233.31

10 W10347466 Hinge, Door (2)   (Replaces: 9761493) In-Stock Immediately $ 219.84

11 WPW10118455 Glass, Outer (black)   (Replaces: 9756414) In-Stock Immediately $ 332.70

11 9756416 Glass, Outer (biscuit) Appelez-nous -
11 9756435 Glass, Outer (stainless Model) Appelez-nous -
11 WPW10118454 Glass, Outer (white)   (Replaces: 9756415) Special Order $ 324.91

12 W10761014 Trim, Side (black Right Hand)   (Replaces: 8523165) In-Stock Immediately $ 72.96

12 WP8523173 Trim, Side (biscuit Right Hand)   (Replaces: 8523173) Special Order $ 123.53

12 WP8523167 Trim, Side (biscuit Left Hand)   (Replaces: 8523167) Special Order $ 119.10

12 WP8523166 Trim, Side (white Right Hand)   (Replaces: 8523166) In-Stock Immediately $ 84.23

12 WP8523172 Trim, Side (white Left Hand)   (Replaces: 8523172) In-Stock Immediately $ 69.93

12 W10761018 Trim, Side (black Left Hand)   (Replaces: 8523171) In-Stock Immediately $ 53.77

13 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 7.55

14 W11594186 Trim, Lower (white)   (Replaces: 8523175) In-Stock Immediately $ 61.37

14 WP8523177 Trim, Lower (black)   (Replaces: 8523177) In-Stock Immediately $ 165.86

14 WP8523178 Trim, Lower (biscuit)   (Replaces: 8523178) Special Order $ 161.77

14 WP8523180 Trim, Lower (stainless Model)   (Replaces: 8523180) Special Order $ 169.00

15 3196025 Clip, Glass (4) Special Order $ 20.10

16 9761517 Clip, Door Mntg Special Order $ 48.11

17 WPW10031790 Screw   (Replaces: W10031790) In-Stock Immediately $ 8.74

18 W10777162 Screw   (Replaces: W10031780) In-Stock Immediately $ 8.26

20 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 7.55

22 3196794 Bracket, Window (2) Special Order $ 24.34

242828 Wire (12 Ga. 150 C Black) Appelez-nous -
72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

3400964 Clip, Harness   (Replaces: 3196520) Special Order $ 89.00

W11825098 Harness, Bake Element (hidden)   (Replaces: 9757339) Special Order $ 86.33

9758174 Harness, Wire, Door Switch/sensor Appelez-nous -
9759002 Harness, Wire (main) Appelez-nous -
9761455 Harness, Wire (cooktop Right) Appelez-nous -
9761453 Harness, Wire (cooktop Left) Special Order $ 105.24

W11839019 Anti-tip Kit   (Replaces: W10017440) In-Stock Immediately $ 28.54

4392901 Paint, Pressurized Spray (12oz.) (biscuit) Appelez-nous -
3184478 Cleaner, Glass Appelez-nous -
313660 Clip, Ground Wire Appelez-nous -
241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

350942 Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922) Special Order $ 94.14

285006 Paint, Pressurized Spray 12 Oz.) (superior Black) Special Order $ 59.89

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

4392899 Paint, Touch-up (1/2oz.) (biscuit) In-Stock Immediately $ 27.77

WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 55.47

WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 55.47

261582 Grease Appelez-nous -
8212471 Touch-up Self-clean(1/2 Pt)   (Replaces: 242756) In-Stock Immediately $ 87.22

W11244557 Screw, Ground   (Replaces: 3196173) Special Order $ 14.29

799832 Kit. Porcelain Repair (white) Appelez-nous -
4392900 Paint, Bulk (1 Qt.) (biscuit) (uncut) Appelez-nous -
242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

242825 Wire (14 Ga. 150 C Red) Appelez-nous -
242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
242823 Wire (14 Ga. 150 C Green) Appelez-nous -
242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
WP3196154 Screw   (Replaces: 3196154) Special Order $ 8.44

3184020 Wire, Ground   (Replaces: 8523279) Special Order $ 86.92


    View Diagram in Separate Window     Print Icon   Print Part List

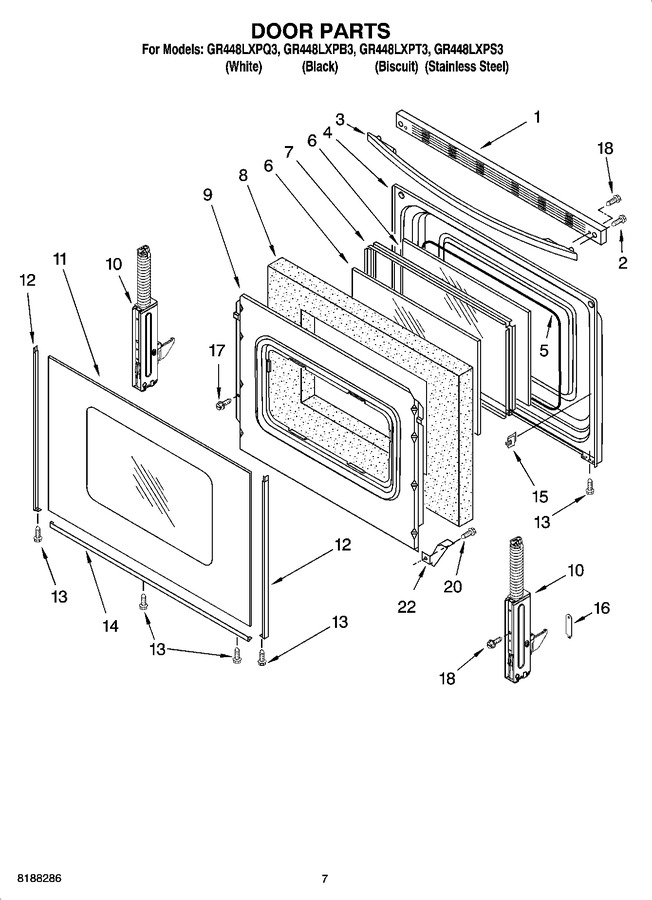

Diagram for GR448LXPS3
