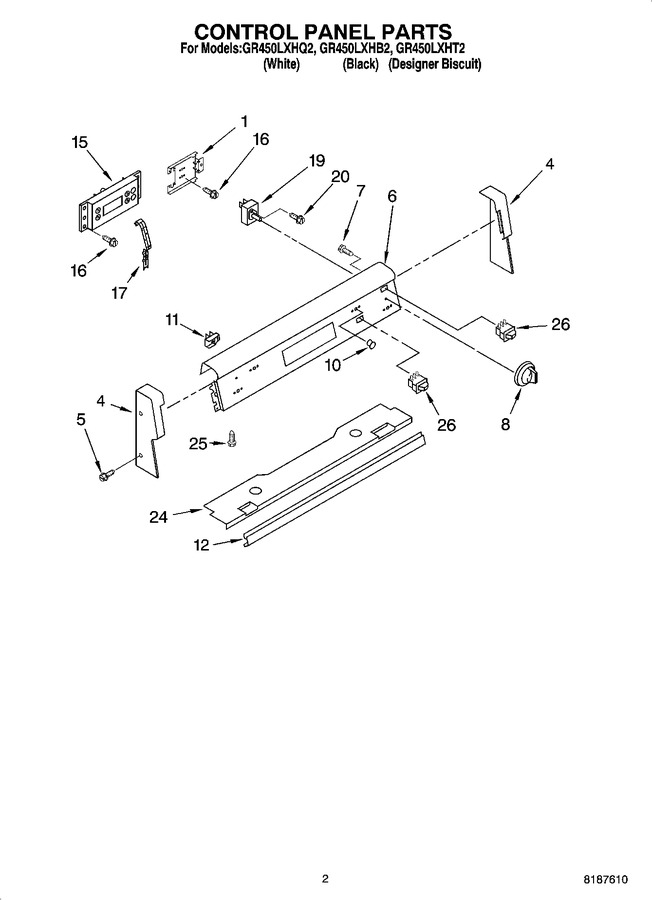

01 - Cooktop Parts
02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9781881 | Bracket, Timer |
|
- | |||||
| 4 | 9752423FW | End Cap Right Hand (white) |
|
- | |||||
| 4 | 9752423FC | End Cap Right Hand (biscuit) |
|
- | |||||
| 4 | 9752423FB | End Cap Right Hand (black) |
|
- | |||||
| 4 | 9752422FW | End Cap Left Hand (white) |
|
- | |||||
| 4 | 9752422FC | End Cap Left Hand (biscuit) |
|
- | |||||
| 4 | 9752422FB | End Cap Left Hand (black) |
|
- | |||||
| 5 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 6 | 9754089PW | Panel, Control (white) |
|
- | |||||
| 6 | 9754089PC | Panel, Control (biscuit) |
|
- | |||||
| 6 | 9754089PB | Panel, Control (black) |
|
- | |||||
| 7 | 9780852 | Screw, 8-18 X 3/8 |
|
- | |||||
| 8 | WP9752405FW | Knobs, Control (white) (Replaces: 9752405FW) |
|
$ 22.20 | |||||
| 8 | 9752405FC | Knobs, Control (biscuit) |
|
- | |||||
| 8 | 9752405FB | Knobs, Control (black) |
|
$ 17.20 | |||||
| 10 | WP9750343 | Lens, Indicator (Replaces: 9752589) |
|
Immediately | $ 5.71 | ||||
| 11 | 313102 | Light Indicator |
|
$ 66.48 | |||||
| 12 | 9752440PW | Trim Strip (white) |
|
- | |||||
| 12 | 9752440PC | Trim Strip (biscuit) |
|
- | |||||
| 12 | 9752440PB | Trim Strip (black) |
|
- | |||||
| 15 | 9782087CB | Timer (black) |
|
- | |||||
| 15 | 9782087CW | Timer (white) |
|
- | |||||
| 15 | 9782087CC | Timer (biscuit) |
|
- | |||||
| 16 | 9780272 | Screw, 10-16 X 1/2 |
|
- | |||||
| 17 | 9781754 | Bracket, Timer |
|
- | |||||
| 19 | WP9755173 | Infinite Switch (dual) (Replaces: 9755173) |
|
Immediately | $ 149.46 | ||||
| 19 | WP9750638 | Infinite Switch (1500w) (Replaces: 9750638) |
|
Immediately | $ 113.89 | ||||
| 19 | WP9750639 | Infinite Switch (1800w (2)) (Replaces: 9750639) |
|
Immediately | $ 152.66 | ||||
| 20 | WP3400882 | Screw, 8-32 X 3/16 (Replaces: 3400816) |
|
Immediately | $ 7.19 | ||||
| 24 | 9752439 | Base, Console |
|
- | |||||
| 25 | WP3400832 | Screw, 8-18 X 1/2 (Replaces: 3196168) |
|
Immediately | $ 7.75 | ||||
| 26 | 9754008 | Switch, Rocker Illuminated (insulation, Control) |
|
- | |||||
| 26 | 9753692FW | Switch, Rocker Illuminated (white) |
|
- | |||||
| 26 | 9753692FB | Switch, Rocker Illuminated (black) |
|
- | |||||
| 26 | 9753692FC | Switch, Rocker Illuminated (biscuit On/off) |
|
- | |||||
| 26 | 9753261FW | Switch, Rocker Illuminated (white) |
|
- | |||||
| 26 | WPW10163899 | Switch, Rocker Illuminated (black) (Replaces: 9753261FB) |
|
$ 89.39 | |||||
| 26 | WPW10163899 | Switch, Rocker Illuminated (biscuit) (Replaces: 9753261FC) |
|
$ 89.39 |
