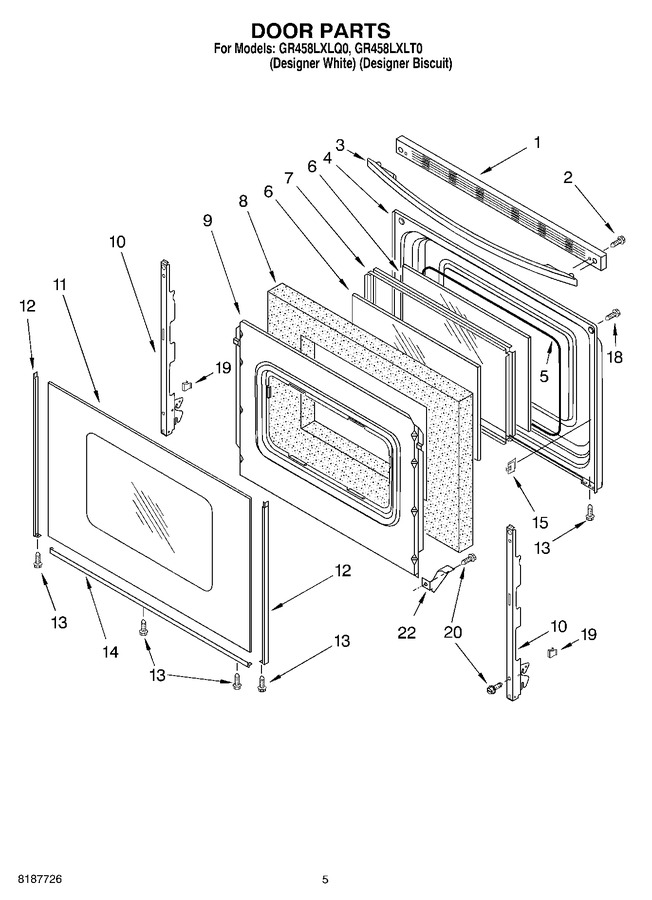

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8522433		Trim, Door Top (white)		Appelez-nous	-
1	8522434		Trim, Door Top (biscuit)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202216		Handle, Door (white)   (Replaces: 8522444)				$ 370.67
3	8522445		Handle, Door (biscuit)		Appelez-nous	-
4	3186292		Liner, Door		Appelez-nous	-
5	8522414		Seal, Window				$ 160.59
6	WP8053948		Glass, Inner (2)   (Replaces: 8053948)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 101.37
9	W11539580		Retainer, Insul.   (Replaces: 3186297)				$ 233.31
10	WP8053807		Hinge, Door (2)   (Replaces: 8053807)				$ 101.17
11	WP8053834		Glass, Outer Door (white)   (Replaces: 8053480)				$ 291.86
11	8272498		Glass, Outer Door (biscuit)		Appelez-nous	-
12	WP8523166		Trim, Side (white Right Hand)   (Replaces: 8523166)			Immediately	$ 84.23
12	WP8523172		Trim, Side (white Left Hand)   (Replaces: 8523172)			Immediately	$ 69.93
12	WP8523167		Trim, Side (biscuit Right Hand)   (Replaces: 8523167)				$ 119.10
12	WP8523173		Trim, Side (biscuit Left Hand)   (Replaces: 8523173)				$ 123.53
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
14	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 61.37
14	WP8523178		Trim, Lower (biscuit)   (Replaces: 8523178)				$ 161.77
15	3196025		Clip, Glass (6)				$ 20.10
18	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 8.42
19	3196925		Clip, Door Stop				$ 9.06
20	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
22	3196794		Bracket, Window (2)				$ 24.34
