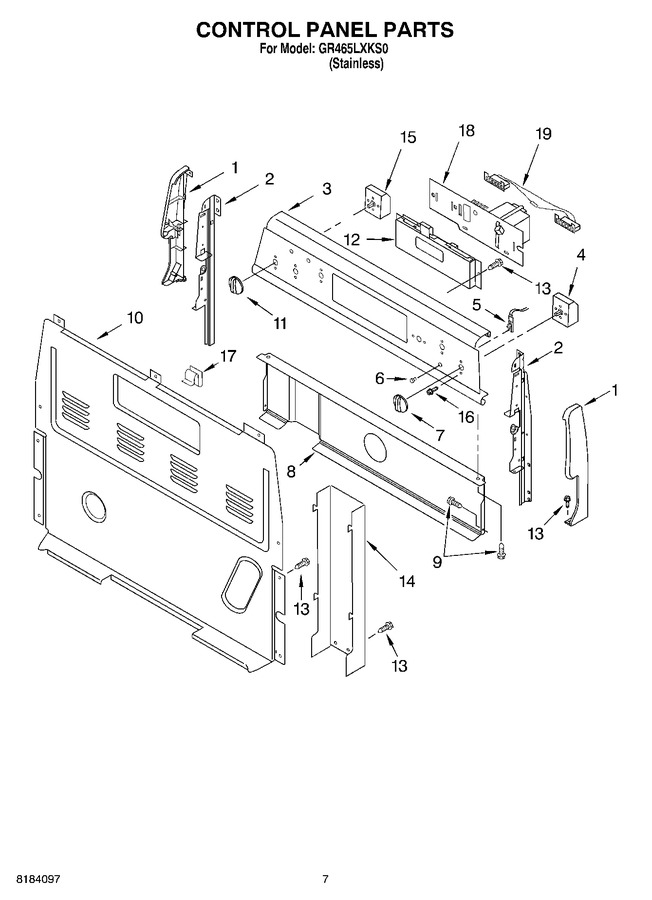

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186189		Endcap, Right Hand (black)		Appelez-nous	-
1	3186188		Endcap (black Left Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	8522886		Panel, Backguard		Appelez-nous	-
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148951)			Immediately	$ 52.39
4	8053510		Switch, Infinite (keep Warm-ctr Rear)		Appelez-nous	-
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 69.51
4	WP9761048		Switch, Infinite (left Front)   (Replaces: 8522887)			Immediately	$ 152.52
5	8522790		Light, Ind. (accusimmer)		Appelez-nous	-
5	8522791		Light, Ind. (element)		Appelez-nous	-
5	8522953		Light, Ind. (right Side)		Appelez-nous	-
6	WP3196068		Lens, Light (3)   (Replaces: 3196068)			Immediately	$ 6.26
7	WP8522566		Knob, Infinite (4)   (Replaces: 8522566)				$ 22.29
8	8053911		Shield, Heat		Appelez-nous	-
9	W10276642		Screw   (Replaces: 4449746)				$ 6.41
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 219.04
11	8522570		Knob, Infinite (2) Accusim/keep Warm				$ 6.44
12	8522532		Control, Range		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WPW10326122		Cover, Box   (Replaces: 3195133)				$ 139.60
15	8053511		Selector, Accusim		Appelez-nous	-
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
17	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
18	9755076		Power Supply, Pca		Appelez-nous	-
19	978883		Almond (uncut)		Appelez-nous	-
19	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
19	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
19	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
19	814381		Pin Kit-dr Removal				$ 11.28
19	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
19	3191048		Cleaner, Glass		Appelez-nous	-
19	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 32.62
19	8522604		Harness, Cooktop		Appelez-nous	-
19	8522521		Harness, Oven Eoc		Appelez-nous	-
19	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
19	8273266		Harness, Door Switch		Appelez-nous	-
19	3196696		Clip, Harness		Appelez-nous	-
19	8522789		Harness, Accbk2		Appelez-nous	-
19	3184020		Wire, Ground   (Replaces: 311227)				$ 86.92
19	WP3196154		Screw, Ground Wire   (Replaces: 3196154)				$ 8.44
19	8053692		Shield, Wiring		Appelez-nous	-
19	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
19	313660		Clip, Ground Wire		Appelez-nous	-
19	8273906		Jumper W/ Fuse		Appelez-nous	-
19	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
19	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
19	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
19	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
19	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
19	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
19	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
19	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
19	242831		Wire (14 Ga. 200 C Red)				$ 342.23
19	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
19	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
19	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
19	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
19	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
19	261582		Grease		Appelez-nous	-
19	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
19	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
19	4392899		Biscuit			Immediately	$ 27.77
19	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
19	285006		Paint, Spray 13 Oz. (black)				$ 59.89
19	350942		Primer (white)   (Replaces: 206922)				$ 94.14
19	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
19	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
19	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
