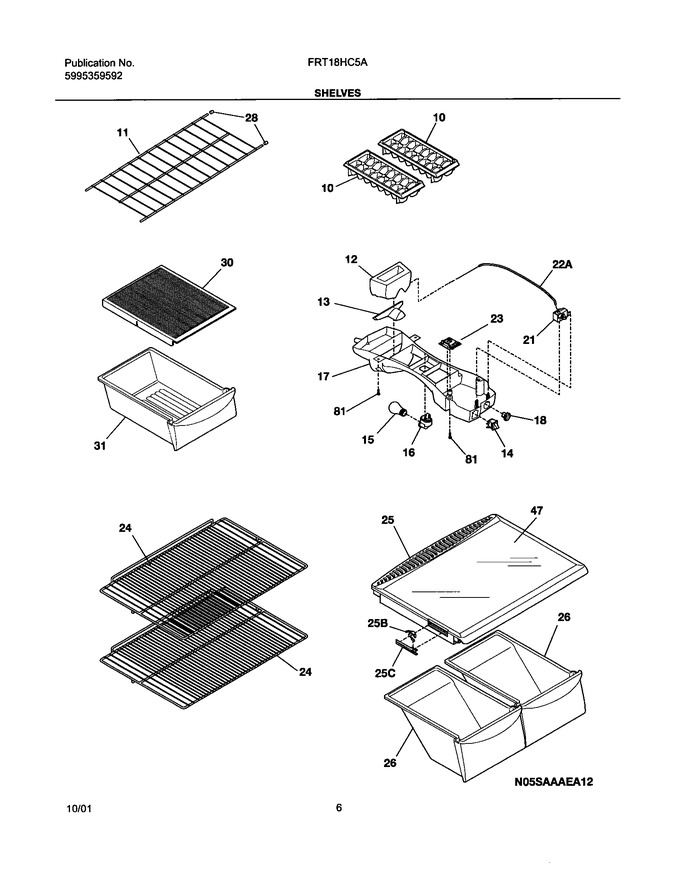

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.74
11	240358002		Shelf-freezer,full Width		Appelez-nous	-
12	240362502		Diffuser-air,top		Appelez-nous	-
13	240362601		Diffuser-air,bottom			Immediately	$ 46.46
14	240505801		Switch-light/lamp				$ 74.03
15	316538904		Light Bulb/lamp,a-15 ,40 W ,120 V ,miniature   (Replaces: 240436701)			Immediately	$ 22.75
16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 80.75
17	240352701		Control Box		Appelez-nous	-
18	240360801		Knob-control				$ 43.95
24	240360908		Shelf,sliding ,wire   (Replaces: 240360905)				$ 105.53
25	240364793		Cover-crisper Pan,with Beam ,humid Cont   (Replaces: 240364713)			Immediately	$ 121.04
26	240337103		Pan-crisper,clear ,(2) ,no Graphics			Immediately	$ 164.83
28	3201150		End Cap,freezer Shelf ,protector				$ 4.57
30	240361801		Cover,meat Pan Hanger ,drop Through		Appelez-nous	-
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240354203)			Immediately	$ 150.86
47	240350608		Insert-pan Cover,glass   (Replaces: 240350643)			Immediately	$ 50.55
81	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 10.11
25B	5304492617		Control-humidity   (Replaces: 240361202)			Immediately	$ 9.65
25C	5304492617		Damper-humidity Control   (Replaces: 240361301)			Immediately	$ 9.65
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 80.34
F23	240375801		Control-defrost,adaptive Timer ,pc Board		Appelez-nous	-
NI	5304455649		Screw   (Replaces: 5303001259)				$ 18.90
NI	5303299664		Spacer-shelf				$ 26.78
NI	240375501		Wiring Harness,control Box		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
