SELECT A DIAGRAM

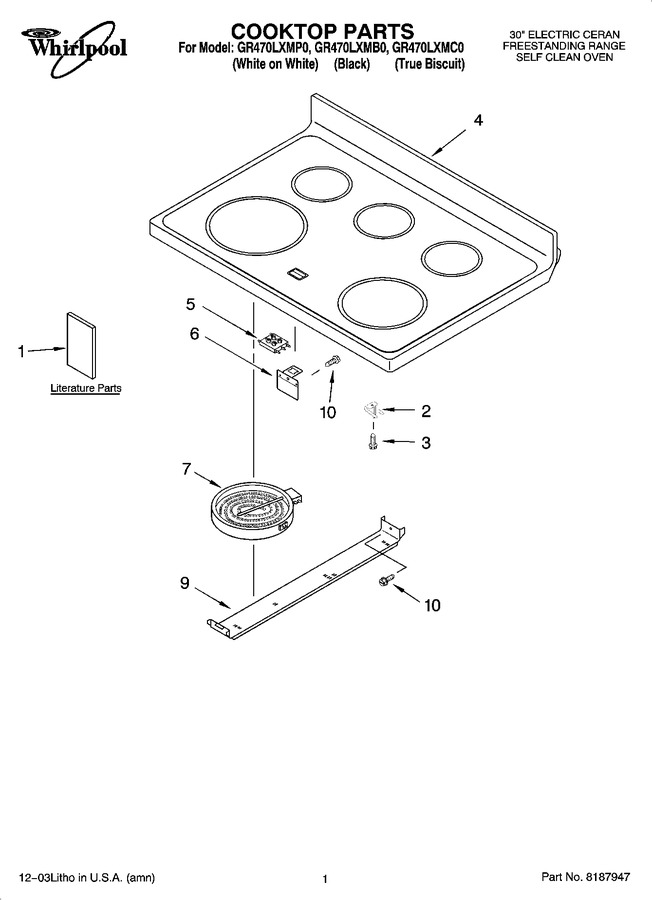

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer & Broiler Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9757983		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8523048		Installation Instructions (spanish)		Appelez-nous	-
1	LIT9756849		Literature Parts (instructions Installation (french))		Appelez-nous	-
1	LIT9756384		Guide, Use & Care		Appelez-nous	-
1	LIT8524264		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	3149191		Spring, Locator				$ 9.45
3	WP3196170		Screw   (Replaces: 3196170)				$ 7.55
4	9755857		Cooktop (black/black)		Appelez-nous	-
4	9755859		Cooktop (biscuit/honeycomb)		Appelez-nous	-
4	9755858		Cooktop (white/light Grey)		Appelez-nous	-
5	8523739		Light, Indicator (hot Surface)				$ 120.71
6	8523741		Bracket, Ind Light		Appelez-nous	-
7	W10823711		Element, Surface (1200 W - Lr,rr)   (Replaces: 8523698)			Immediately	$ 204.39
7	W10823698		Element, Surface (1800w - Rf)   (Replaces: 8523696)			Immediately	$ 195.12
7	WP8523699		Element, Surface (100 W - Cr)   (Replaces: 8523699)				$ 180.44
7	W10823692		Element, Surface (2400/1000 W - Lf)   (Replaces: 8523693)			Immediately	$ 227.59
9	8272791		Bracket, Element ((2))		Appelez-nous	-
9	8273720		Bracket, Element ((1))		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
