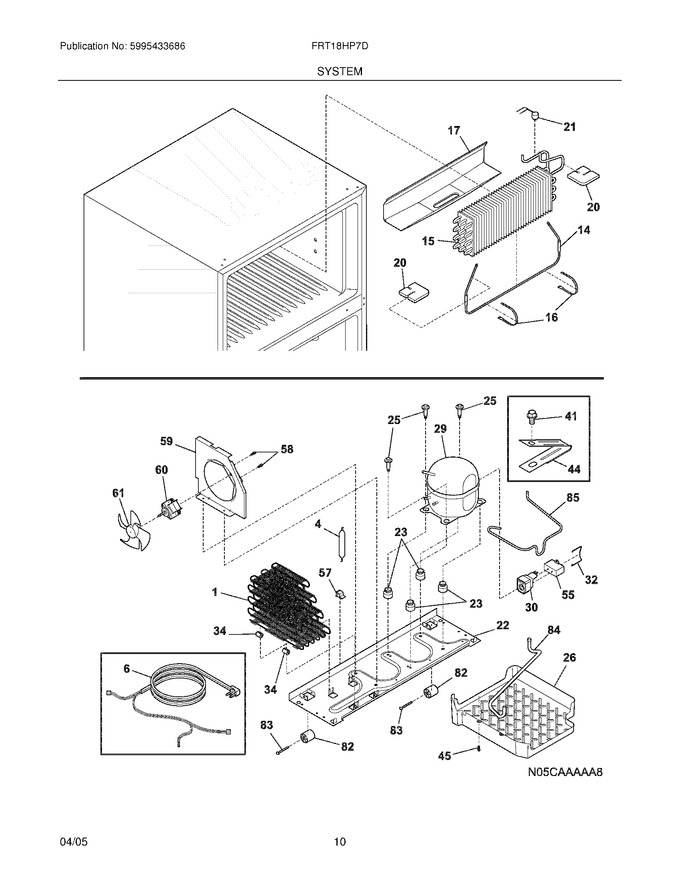

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 240496101 | Wiring Harness,machine Compt ,w/electric Cord |
|
$ 278.40 | |||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 66.47 | ||||
| 17 | 241801301 | Trough-drain (Replaces: 241551801) |
|
$ 71.62 | |||||
| 20 | 241551901 | Insulation Block |
|
- | |||||
| 22 | 241602001 | Base-compressor |
|
- | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 47.25 | |||||
| 25 | 240491501 | Screw-compressor Mtg,1/4-28 X 1.16 ,shoulder,typ Cf |
|
- | |||||
| 26 | 241920605 | Pan-defrost Drain (Replaces: 240332608) |
|
$ 59.73 | |||||
| 32 | 241527901 | Clamp,elec Cont Mtg ,compressor |
|
- | |||||
| 34 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 22.05 | |||||
| 41 | 241941202 | Screw,hex Washer Head ,8-18 X 5/16 (Replaces: 240433202) |
|
$ 16.85 | |||||
| 44 | 5303001199 | Clamp-wiring Harness,strain Relief ,galv Steel |
|
$ 73.24 | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 55 | 297286803 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909915) |
|
Immediately | $ 31.97 | ||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 58 | 240555002 | Screw,hex Washer Head ,8-32 X 0.375 (Replaces: 218897002) |
|
Immediately | $ 14.96 | ||||
| 59 | 5304430246 | Bracket-cond Motor Assy |
|
- | |||||
| 60 | 5303918774 | Motor,condensor Fan (Replaces: 240525402) |
|
Immediately | $ 207.00 | ||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 57.30 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin (Replaces: 5303316859) |
|
Immediately | $ 39.27 | ||||
| 84 | 240500801 | Tube-drain,rubber ,lower |
|
$ 72.45 | |||||
| 85 | 241856901 | Tube-connector,suction (Replaces: 240553501) |
|
$ 86.79 | |||||
| F1 | 240444401 | Condenser,dynamic |
|
- | |||||
| F14 | 5303918208 | Defrost Heater Kit |
|
Immediately | $ 121.28 | ||||
| F15 | 5303918274 | Evaporator Kit |
|
Immediately | $ 470.74 | ||||
| F21 | 5303918202 | Thermostat-defrost,kit |
|
Immediately | $ 22.46 | ||||
| F29 | 5304511983 | Compressor,w/electricals (Replaces: 5303918299) |
|
$ 746.51 | |||||
| F30 | 216954235 | Starter (Replaces: 241527802) |
|
Immediately | $ 96.90 | ||||
| F4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 35.19 | ||||
| F61 | 240524102 | Fan Blade,galv Steel ,condenser Fan (Replaces: 240524101) |
|
Immediately | $ 43.81 | ||||
| NI | 240359401 | Screw-fan Shroud,(2) |
|
- | |||||
| NI | 240346701 | Tape-foam Seal,shroud |
|
$ 33.08 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 88.99 | ||||
| NI | 241520701 | Harness-wiring,freezer |
|
$ 95.97 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 15.75 | ||||
| NI | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 21.26 | |||||
| NI | 5303918263 | Heat Exchanger Kit,suction Line |
|
$ 512.40 | |||||
| NI | 5303918222 | Hot Tube Repair Kit,service |
|
$ 418.12 |
