SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts

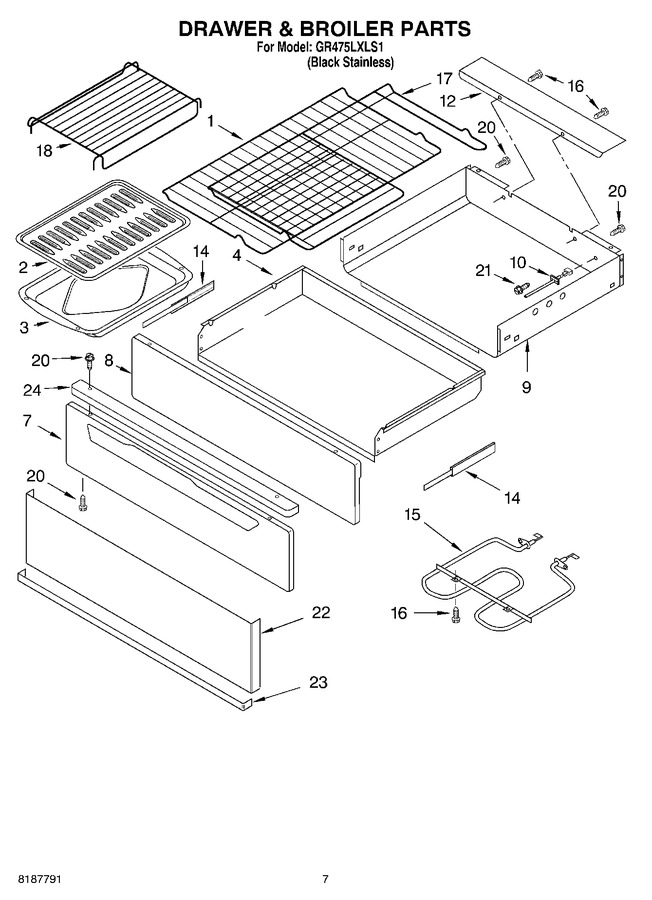

05 - Drawer & Broiler Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 46.84
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 98.65
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 330.36
4	8272610		Drawer, Warming				$ 141.41
7	W11230488		Panel, Drawer Front   (Replaces: 8053341)				$ 212.44
8	8272609		Panel, Inner				$ 36.52
9	8274153		Enclosure, Drawer		Appelez-nous	-
10	WP8274149		Sensor   (Replaces: 8274149)			Immediately	$ 192.05
12	8272977		Shield, Element		Appelez-nous	-
14	8054066		Glide, Accuride (right Hand)		Appelez-nous	-
14	8054065		Glide, Accuride (left Hand)		Appelez-nous	-
15	9760775		Element, Warming   (Replaces: 8054056)				$ 179.06
16	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
17	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 159.11
18	4396927		Rack, Insert   (Replaces: 8274022)				$ 246.10
20	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
21	WP3196170		Screw   (Replaces: 3196170)				$ 7.55
22	8053951		Panel, Outer		Appelez-nous	-
23	8053950		Trim, Bottom				$ 82.35
24	8053949		Handle, S.s.		Appelez-nous	-
	N/A		Miscellaneous		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	8524070		Harness, Cooktop		Appelez-nous	-
	8524072		Harness, Cooktop (right)		Appelez-nous	-
	3196696		Clip, Wire Harness		Appelez-nous	-
	8273266		Harness, Wire (door Switch)		Appelez-nous	-
	8273907		Harness, Wire (accbk2)		Appelez-nous	-
	8523717		Shield, Wiring (2)		Appelez-nous	-
	3184020		Wire, Ground   (Replaces: 8523279)				$ 86.92
	313660		Clip, Ground Wire		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 14.29
	WP3196154		Screw, Ground   (Replaces: 3196154)				$ 8.44
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	814381		Pin Kit-dr Removal				$ 11.28
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 94.14
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	3191048		Cleaner, Glass		Appelez-nous	-
	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 32.62
	WP98997		Clip, Wire Harness   (Replaces: 98997)				$ 11.64
	8523713		Harness, Oven Eoc		Appelez-nous	-
	8273908		Harness, Wire (element, Wrmdrw)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
