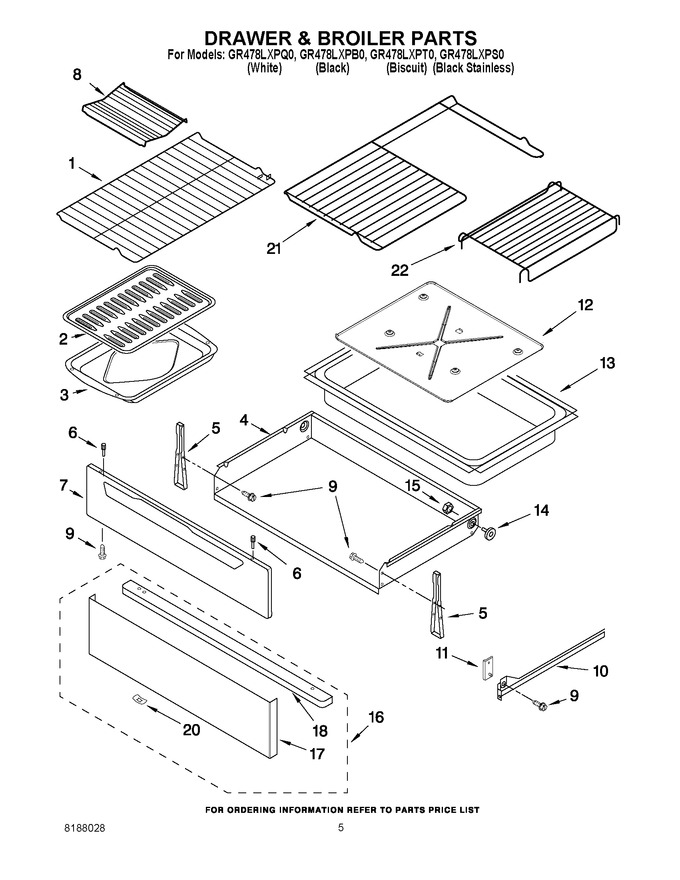

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: 3195710) |
|
Immediately | $ 46.84 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 98.65 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 330.36 | |||||
| 4 | 8272605 | Drawer, Storage |
|
- | |||||
| 5 | W10838990 | Bracket, Drawer (Replaces: 9758200) |
|
Immediately | $ 88.95 | ||||
| 6 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 6 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 7 | W11230488 | Panel, Drawer Frnt (black) (Replaces: 8053341) |
|
$ 212.44 | |||||
| 7 | W11230476 | Panel, Drawer Frnt (biscuit) (Replaces: 8272501) |
|
$ 206.02 | |||||
| 7 | W11219377 | Panel, Drawer Frnt (white) (Replaces: 8053339) |
|
$ 212.57 | |||||
| 8 | 3181534 | Rack, Roasting |
|
- | |||||
| 9 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 10 | 8274191 | Rail, Drawer (left Hand) |
|
- | |||||
| 10 | 8274190 | Rail, Drawer (right Hand) |
|
- | |||||
| 11 | 8522669 | Spacer, Glide |
|
- | |||||
| 12 | 9756711 | Heat Shield, Drawer |
|
- | |||||
| 13 | 8272311 | Liner, Drawer |
|
- | |||||
| 14 | 814229 | Roller (Replaces: 9751138) |
|
Immediately | $ 56.92 | ||||
| 15 | WP487939 | Nut (Replaces: 487939) |
|
$ 8.62 | |||||
| 16 | N/P | Stainless Model Only |
|
- | |||||
| 17 | 8053951 | Panel, Stainless |
|
- | |||||
| 18 | 9757237 | Handle |
|
- | |||||
| 20 | WP9781235 | Speed Clip (Replaces: 9781235) |
|
$ 12.56 | |||||
| 21 | WP8274021 | Rack, Partial (Replaces: 8274021) |
|
$ 159.11 | |||||
| 22 | 4396927 | Rack, Insert (Replaces: 8274022) |
|
$ 246.10 |
