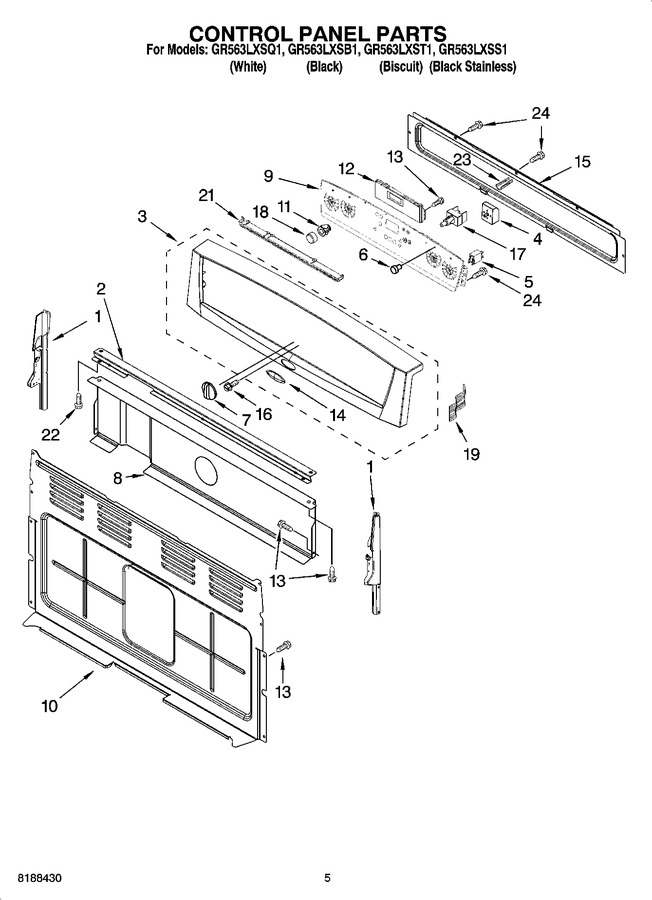

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10009080) |
|
$ 153.83 | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10009040) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10009050) |
|
$ 60.83 | |||||
| 1 | W11230612 | Endcap (biscuit Right Hand) (Replaces: W10009070) |
|
- | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10009090) |
|
$ 45.17 | |||||
| 1 | W10009060 | Endcap (biscuit Left Hand) |
|
- | |||||
| 2 | 9762095 | Bracket, Console |
|
- | |||||
| 3 | 9762587 | Panel, Backguard (biscuit) |
|
- | |||||
| 3 | 9762586 | Panel, Backguard (black) |
|
- | |||||
| 3 | 9762585 | Panel, Backguard (white) |
|
- | |||||
| 3 | 9762588 | Panel, Backguard (unvl Slvr For Ss) |
|
- | |||||
| 4 | WP9758060 | Switch, Infinite (right Front) (Replaces: 9758060) |
|
Immediately | $ 83.13 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | 9757626 | Knob, Infinite (4) (biscuit) |
|
$ 47.42 | |||||
| 7 | 9757132 | Knob, Infinite (4) (white) |
|
$ 106.47 | |||||
| 7 | 9758129 | Knob, Infinite (4) (black) |
|
$ 23.80 | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | 9763547 | Glss Swtch Membrn (biscuit) |
|
- | |||||
| 9 | 9763545 | Glss Swtch Membrn (white) |
|
$ 342.20 | |||||
| 9 | 9763546 | Glss Swtch Membrn (black) |
|
$ 235.36 | |||||
| 10 | 9756999 | Cover, Rear |
|
- | |||||
| 11 | 9757489 | Bezel, Keep Warm (white) |
|
- | |||||
| 11 | 9758488 | Bezel, Keep Warm (biscuit) |
|
- | |||||
| 11 | 9758489 | Bezel, Keep Warm (black) |
|
- | |||||
| 12 | 9763681 | Control, Range |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | 9757613 | Nameplate |
|
$ 121.14 | |||||
| 15 | 9756366 | Cover, Rear (console) |
|
- | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | WP8272820 | Switch (Replaces: 8272820) |
|
$ 178.91 | |||||
| 18 | 9757492 | Button (white) |
|
$ 96.01 | |||||
| 18 | 9758490 | Button (biscuit) |
|
- | |||||
| 18 | 9758491 | Button (black) |
|
$ 19.74 | |||||
| 19 | 9760080 | Cnntr, Cable Flex |
|
- | |||||
| 21 | 9757358 | Reflector, Light |
|
- | |||||
| 22 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 22 | 3196166 | Screw (white) |
|
$ 7.36 | |||||
| 22 | 98008169 | Screw (biscuit) (Replaces: 8281194) |
|
- | |||||
| 23 | 9757490 | Support, Glass |
|
- | |||||
| 24 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 |
