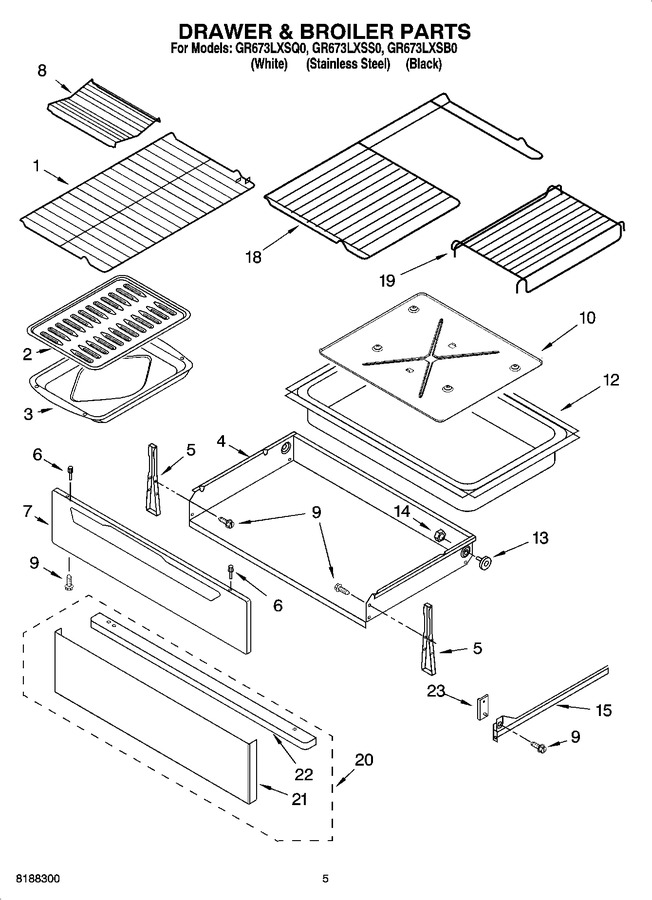

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 46.84 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 98.65 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 330.36 | |||||
| 4 | 9761030 | Drawer, Storage |
|
- | |||||
| 5 | W10838990 | Brkt-mntg, Drawer (Replaces: 9758200) |
|
Immediately | $ 88.95 | ||||
| 6 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 7 | W11230488 | Panel, Drawer Front (black) (Replaces: 8053341) |
|
$ 212.44 | |||||
| 7 | W11219377 | Panel, Drawer Front (white) (Replaces: 8053339) |
|
$ 212.57 | |||||
| 8 | 3181534 | Rack, Roasting |
|
- | |||||
| 9 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 10 | 9756711 | Heat Shield, Drawer |
|
- | |||||
| 12 | 9761032 | Liner, Drawer |
|
- | |||||
| 13 | 814229 | Roller (2) (Replaces: 9751138) |
|
Immediately | $ 56.92 | ||||
| 14 | WP487939 | Nut (2) (Replaces: 487939) |
|
$ 8.62 | |||||
| 15 | 8274191 | Slide, Drawer (right Hand) |
|
- | |||||
| 15 | 8274190 | Slide, Drawer (left Hand) |
|
- | |||||
| 18 | WP8274021 | Rack, Partial (Replaces: 8274021) |
|
$ 159.11 | |||||
| 19 | 4396927 | Rack, Insert (Replaces: 8274022) |
|
$ 246.10 | |||||
| 21 | 9755798 | Panel, Stainless |
|
- | |||||
| 22 | 9762251 | Handle, Drawer |
|
$ 86.77 | |||||
| 23 | 8522669 | Spacer, Glide |
|
- |
