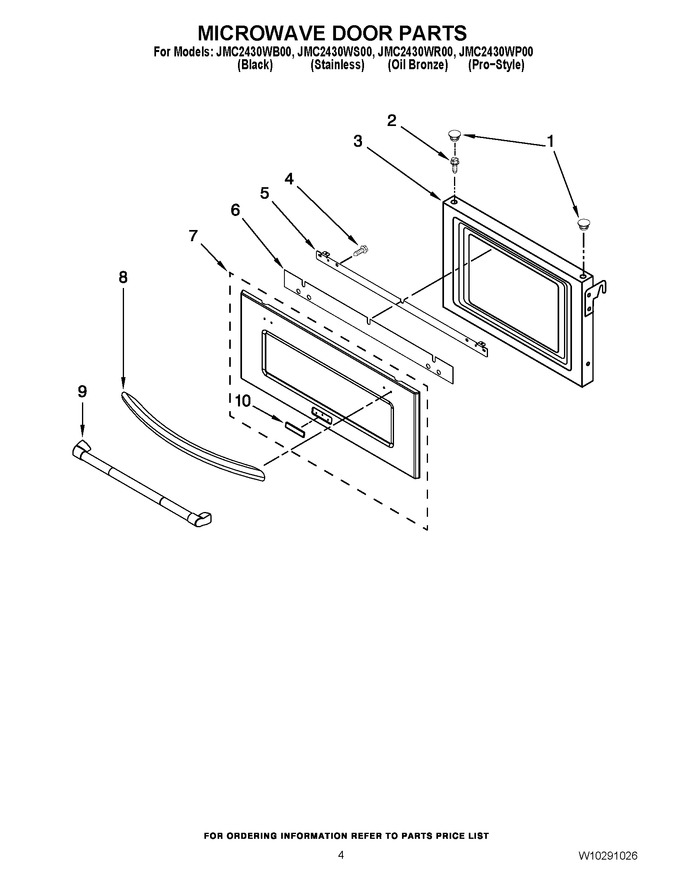

03 - Microwave Door Parts
04 - Cabinet And Stirrer Parts
05 - Internal Microwave Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Button, Plug (Replaces: 8304588BL) |
|
$ 12.34 | |||||
| 2 | WPW10068250 | Screw (Replaces: W10068250) |
|
$ 4.27 | |||||
| 3 | W11684570 | Door, Microwave (Replaces: W10288012) |
|
Immediately | $ 593.74 | ||||
| 4 | W10267047 | Screw |
|
$ 13.47 | |||||
| 5 | W10176199 | Bracket, Handle |
|
$ 42.18 | |||||
| 5 | W10281176 | Bracket, Handle (pro-style) |
|
$ 53.81 | |||||
| 6 | W10277597 | Foam, Bracket (pro-style) |
|
- | |||||
| 6 | W10213722 | Foam, Bracket |
|
$ 84.48 | |||||
| 7 | WPW10176200 | Glass, Assembly (black) (Replaces: W10176200) |
|
$ 449.39 | |||||
| 7 | W10269421 | Glass, Assembly (stainless) |
|
- | |||||
| 7 | W10269422 | Glass, Assembly (oil Bronze) |
|
$ 297.12 | |||||
| 7 | W10269423 | Glass, Assembly (pro-style) |
|
- | |||||
| 8 | W10186755 | Handle, Door (black) |
|
$ 280.79 | |||||
| 8 | W10186757 | Handle, Door (oil Bronze) |
|
$ 280.72 | |||||
| 8 | W10186756 | Handle, Door (stainless) |
|
$ 139.42 | |||||
| 9 | W10856834 | Pro-style (Replaces: W10187014) |
|
$ 335.74 | |||||
| 10 | WPW10214168 | Badge (black) (Replaces: W10190724) |
|
$ 85.95 | |||||
| 10 | WPW10159578 | Badge (pro-style) (Replaces: W10159578) |
|
Immediately | $ 88.54 | ||||
| 10 | W10214169 | Badge (oil Bronze) |
|
$ 53.42 | |||||
| 10 | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 85.95 |
