01 - Control Panel Parts


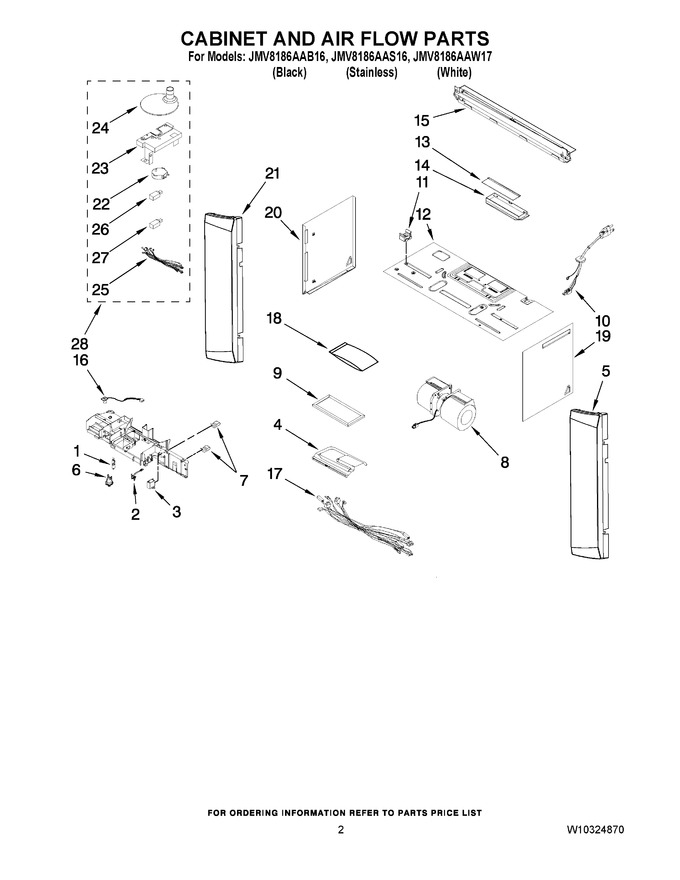

02 - Cabinet And Air Flow Parts


03 - Interior And Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4713-001165		Lamp			Immediately	$ 37.00
2	DE47-00020A		Holder, Lamp				$ 31.16
3	DE59-50002A		Capacitor-motor			Immediately	$ 30.38
4	DE61-00410A		Bracket, Duct (u)		Appelez-nous	-
5	DE64-01415B		Panel, Decor (right, White)		Appelez-nous	-
5	DE97-00583A		Panel, Decor (right, Black)		Appelez-nous	-
6	555555		Thermostat   (Replaces: DE47-20059A)				$ 168.82
7	DE60-30063A		Nut-mounting				$ 12.63
8	555555		Motor, Fan Assy   (Replaces: DE31-00029B)				$ 168.82
9	555555		Filter-charcoal   (Replaces: DE63-00367D)				$ 168.82
10	DE96-00218A		Cord, Power				$ 87.50
11	DE92-90508A		Holder, Sensor			Immediately	$ 19.53
12	DE64-01397B		Panel, Top (black, Ss Model)		Appelez-nous	-
12	DE64-01397C		Panel, Top (white)		Appelez-nous	-
13	DE71-60051A		Damper, Assembly				$ 25.88
14	DE72-40022A		Plate, Damper			Immediately	$ 13.41
15	DE70-00546A		Plate, Mounting		Appelez-nous	-
16	DE32-60011A		Sensor-gas			Immediately	$ 95.86
17	DE39-30099A		Main Harness		Appelez-nous	-
18	DE92-90505E		Install, Hardware				$ 46.00
19	DE64-01407C		Panel, Right (white)		Appelez-nous	-
19	DE64-01407B		Panel, Right (black, Ss Model)		Appelez-nous	-
20	DE64-01406C		Panel, Left (white)		Appelez-nous	-
20	DE64-01406B		Panel, Left (black, Ss Model)		Appelez-nous	-
21	DE97-00584A		Panel, Decor (left, Black)		Appelez-nous	-
21	DE64-01414B		Panel, Decor (left, White)		Appelez-nous	-
22	DE31-10154C		Motor, Vent				$ 62.31
23	DE61-00118A		Plate, Cam		Appelez-nous	-
24	DE72-00145A		Cam-louver				$ 14.81
25	DE39-00253A		Harness, Vent		Appelez-nous	-
26	3405-001051		Switch-micro		Appelez-nous	-
27	3405-001050		Switch-micro				$ 30.38
28	DE97-00181A		Assembly, Louver		Appelez-nous	-
NI	W10197644		Template, Wall		Appelez-nous	-
NI	DE68-03144B		Template, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
