01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
11 - Ice Maker
New Model Search:

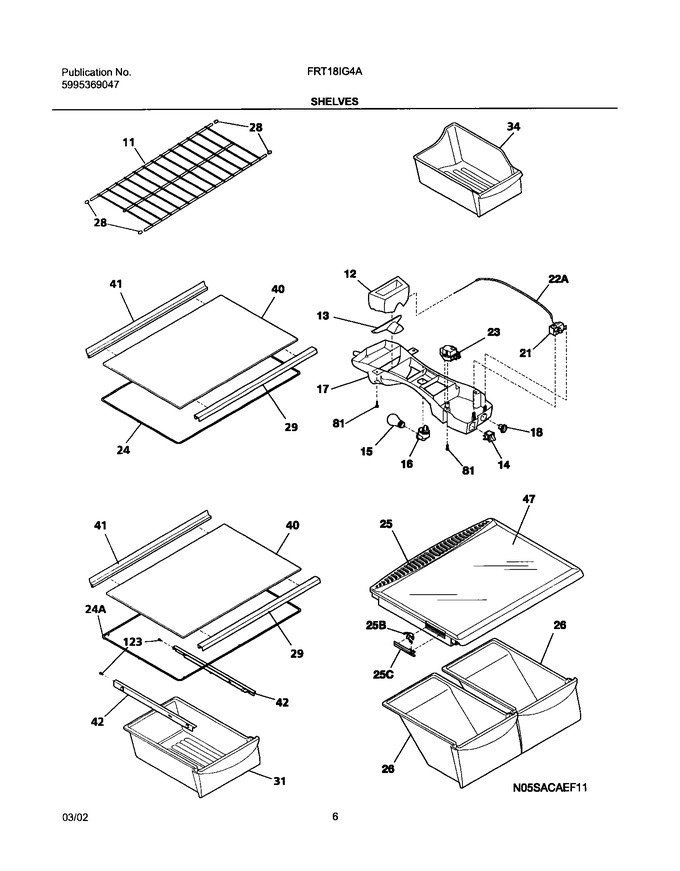

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358002 | Shelf-freezer,full Width |
|
- | |||||
| 12 | 240362502 | Diffuser-air,top |
|
- | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 46.46 | ||||
| 14 | 240505801 | Switch-light/lamp |
|
$ 74.03 | |||||
| 15 | 316538904 | Light Bulb/lamp,a-15 ,40 W ,120 V ,miniature (Replaces: 240436701) |
|
Immediately | $ 22.75 | ||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 241500701) |
|
$ 80.75 | |||||
| 17 | 240352701 | Control Box |
|
- | |||||
| 18 | 240360801 | Knob-control |
|
$ 43.95 | |||||
| 24 | 240372409 | Frame,sliding Shelf ,full Width |
|
$ 141.20 | |||||
| 25 | 240364793 | Cover-crisper Pan,with Beam ,humid Cont (Replaces: 240364713) |
|
Immediately | $ 121.04 | ||||
| 26 | 240337103 | Pan-crisper,clear ,(2) ,no Graphics |
|
Immediately | $ 164.83 | ||||
| 28 | 3201150 | End Cap,freezer Shelf ,protector |
|
$ 4.57 | |||||
| 29 | 240357704 | Trim-shelf,front |
|
Immediately | $ 73.61 | ||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear (Replaces: 240530803) |
|
Immediately | $ 150.86 | ||||
| 34 | 240385201 | Container-ice |
|
$ 108.70 | |||||
| 40 | 240350620 | Glass-shelf,23.78`` X 16.34`` |
|
Immediately | $ 156.55 | ||||
| 41 | 240561502 | Trim-shelf,rear (Replaces: 240357804) |
|
Immediately | $ 79.54 | ||||
| 42 | 240530701 | Hanger-meat Pan,rh |
|
Immediately | $ 73.31 | ||||
| 42 | 240530601 | Hanger-meat Pan,lh |
|
Immediately | $ 73.31 | ||||
| 47 | 240350608 | Insert-pan Cover,23.82`` X 15.50`` ,glass |
|
Immediately | $ 50.55 | ||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 123 | 215005101 | Screw-roller/hanger`8-10 X 0.438 (Replaces: 215005100) |
|
$ 16.54 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 10.11 | |||||
| 24A | 240372410 | Frame,sliding Shelf ,full Width ,w/hanger Tabs |
|
$ 303.77 | |||||
| 25B | 5304492617 | Control-humidity (Replaces: 240361202) |
|
Immediately | $ 9.65 | ||||
| 25C | 5304492617 | Damper-humidity Control (Replaces: 240361301) |
|
Immediately | $ 9.65 | ||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 80.34 | ||||
| F23 | 215846602 | Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 31.33 | ||||
| NI | 240371304 | Seal,foam ,air Diffuser |
|
$ 13.65 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 88.99 | ||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 18.90 | |||||
| NI | 5303299664 | Spacer-shelf |
|
$ 26.78 |
