SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

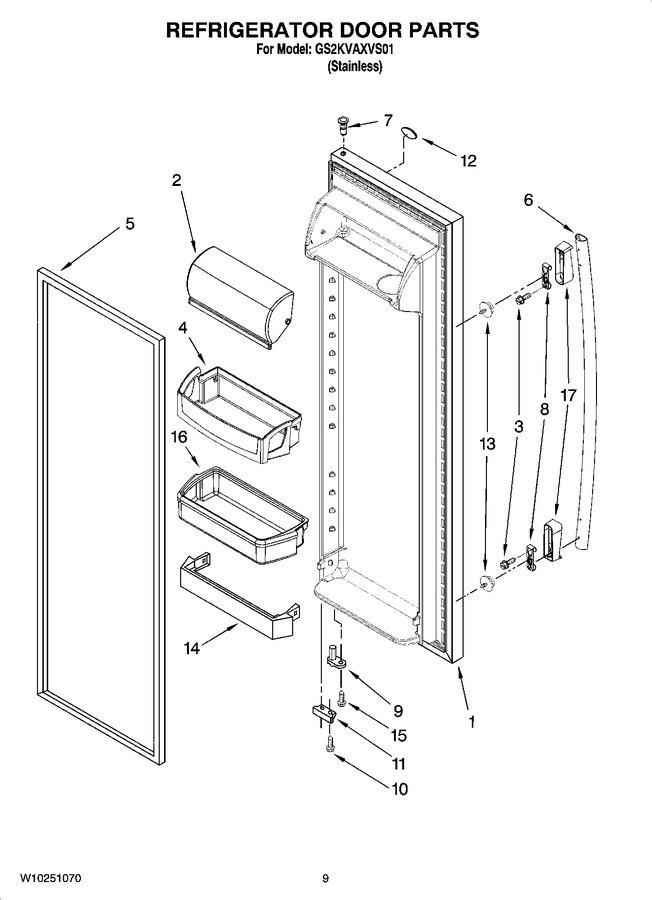

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2325213SB		Refrigerator Door (includes Item 5) (stainless)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 8.78
4	2223463		Door Bin (1)		Appelez-nous	-
5	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 335.58
6	W10273555		Handle (includes 3) (stainless/satina)   (Replaces: W10127768)				$ 197.28
7	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
8	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 11.41
11	2200082		Bracket, Door Stop (zinc)				$ 5.83
12	2220214		Nameplate				$ 32.43
13	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
14	WP2156022		Trivet   (Replaces: 2156022)			Immediately	$ 72.80
15	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
16	W10158506		Door Bin				$ 109.63
17	W10152862		End Cap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
