01 - Control Panel Parts
02 - Cabinet And Air Flow Parts

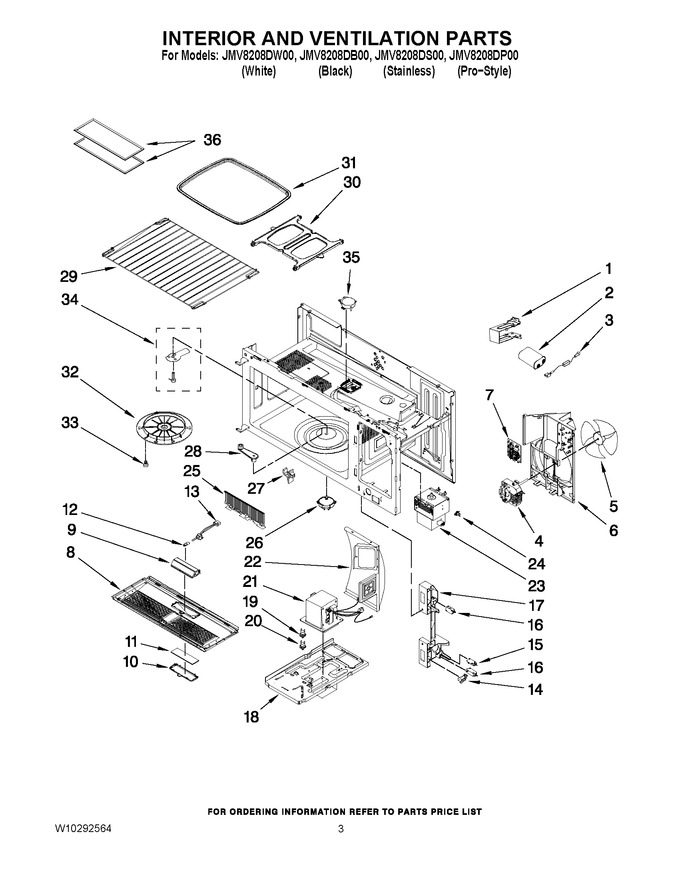

03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE61-00115A | Bracket, Capacitor |
|
$ 20.00 | |||||
| 2 | 8206562 | Capacitor (Replaces: 2501-001016) |
|
Immediately | $ 120.92 | ||||
| 3 | DE91-70063D | Diode, H.v. |
|
Immediately | $ 17.65 | ||||
| 4 | W10250841 | Motor, Fan |
|
$ 84.50 | |||||
| 5 | DE31-90051A | Blade, Fan |
|
$ 7.72 | |||||
| 6 | W10197780 | Guide, Suction |
|
- | |||||
| 7 | W10182040 | Filter, Noise |
|
$ 42.08 | |||||
| 8 | W10192477 | Plate, Bottom (black) |
|
$ 34.71 | |||||
| 8 | W10192097 | Plate, Bottom (white) |
|
- | |||||
| 9 | DE61-00407C | Reflector, Lamp |
|
$ 10.11 | |||||
| 10 | DE63-00137C | Holder, Glass (white) |
|
$ 10.91 | |||||
| 10 | DE63-00137B | Holder, Glass (black) |
|
$ 28.25 | |||||
| 11 | DE64-00911A | Glass, Lamp |
|
$ 20.00 | |||||
| 12 | 4713-001165 | Lamp, Halogen |
|
Immediately | $ 37.00 | ||||
| 13 | DE47-00032B | Holder, Lamp |
|
$ 38.34 | |||||
| 14 | DE66-90106B | Lever, Switch |
|
$ 19.53 | |||||
| 15 | 3405-001033 | Switch, Micro |
|
Immediately | $ 19.53 | ||||
| 16 | 3405-001034 | Switch, Micro |
|
Immediately | $ 16.50 | ||||
| 17 | DE66-00168A | Latch Board |
|
Immediately | $ 20.72 | ||||
| 18 | W10187747 | Plate, Base |
|
- | |||||
| 19 | 555555 | Sw-thermo (Replaces: DE47-20059A) |
|
$ 168.82 | |||||
| 20 | DE47-20034A | Thermostat (2) |
|
Immediately | $ 22.32 | ||||
| 21 | W10250839 | Transformer, H.v. |
|
$ 225.82 | |||||
| 22 | W10197689 | Bracket, Duct Rear |
|
- | |||||
| 23 | WPW10126786 | Magnetron (Replaces: W10126786) |
|
$ 347.05 | |||||
| 24 | 555555 | Thermostat (Replaces: DE47-20007A) |
|
$ 168.82 | |||||
| 25 | W10197680 | Cover, Front |
|
$ 6.72 | |||||
| 26 | 555555 | Motor, Turntable (Replaces: DE31-00040A) |
|
$ 168.82 | |||||
| 27 | DE61-00375A | Hook, Rack |
|
$ 19.53 | |||||
| 28 | W10258244 | Coupler, Glider |
|
- | |||||
| 29 | 555555 | Rack, Wire (Replaces: DE75-00036A) |
|
$ 168.82 | |||||
| 30 | DE61-00855A | Guide, Tray |
|
- | |||||
| 31 | DE63-00383A | Tray, Cooking |
|
$ 146.43 | |||||
| 32 | W10258285 | Cover, Stirrer |
|
- | |||||
| 33 | DE66-20095B | Button, Lock |
|
$ 19.53 | |||||
| 34 | W10197709 | Stirrer, Assembly |
|
$ 42.28 | |||||
| 35 | DE31-10173A | Motor, Drive |
|
$ 60.97 | |||||
| 36 | DE63-00196A | Filter, Grease |
|
Immediately | $ 16.41 |
