SELECT A DIAGRAM

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts

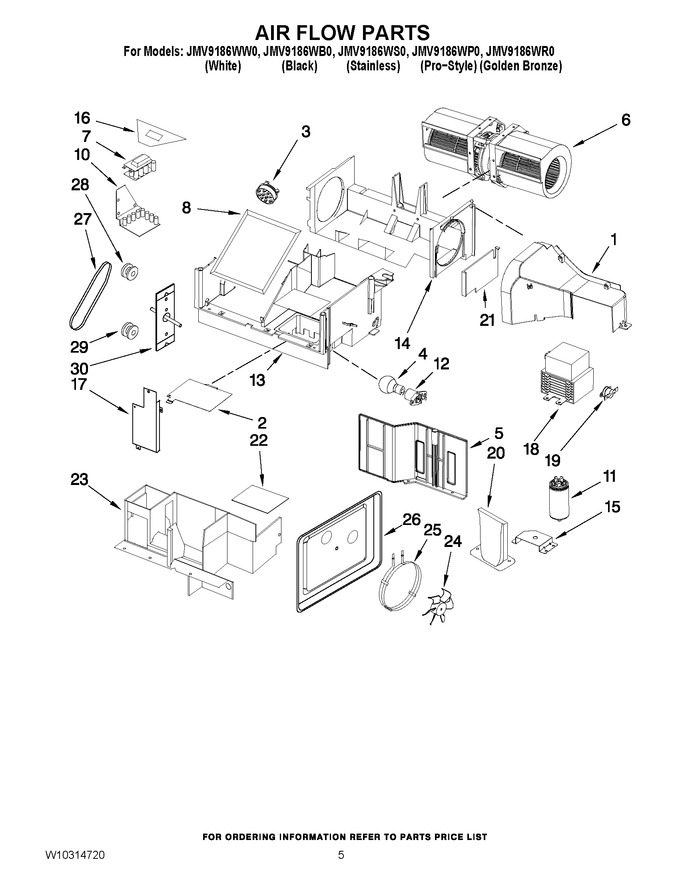

04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10640886		Deflector, Air   (Replaces: W10248269)		Appelez-nous	-
2	8206382		Cover, Lamp				$ 9.17
3	W10245178		Sensor, Humidity				$ 177.01
4	8206232A		Lamp   (Replaces: 4393681)			Immediately	$ 7.71
5	W10245192		Cover, Side Inlet		Appelez-nous	-
6	W10249323		Motor, Fan Assy		Appelez-nous	-
7	W10249326		Motor, Fc		Appelez-nous	-
8	8206230A		Filter, Charcoal   (Replaces: 8206230)			Immediately	$ 20.21
10	W10259228		Bracket, Motor		Appelez-nous	-
11	8206624		Filter				$ 38.80
12	WPW10210878		Holder, Lamp   (Replaces: W10210878)			Immediately	$ 34.87
13	W10249325		Base Plate, Air Guide		Appelez-nous	-
14	W10249324		Holder		Appelez-nous	-
15	W10248273		Brkt-mntg,filter		Appelez-nous	-
16	W10139750		Socket, Motor Wire		Appelez-nous	-
17	W10249328		Cover, Inlet Air Cavity Guide				$ 56.92
18	W10245183		Magnetron			Immediately	$ 245.45
19	W10598693		Thermostat   (Replaces: 8206342)				$ 65.26
20	W10164716		Plate, Water Proof				$ 30.03
21	W10245182		Cover, Right Duct		Appelez-nous	-
22	W10249511		Cavity Lamp Foil		Appelez-nous	-
23	W10310721		Sealing Plate		Appelez-nous	-
24	W10249510		Wheel, Fan		Appelez-nous	-
25	W10776366		Heater   (Replaces: W10249509)		Appelez-nous	-
26	W10249508		Assy, Chamber		Appelez-nous	-
27	W10249504		Belt				$ 84.88
28	W10249505		Wheel, Pulley		Appelez-nous	-
29	W10249506		Wheel, Pulley				$ 73.66
30	W10249507		Assy, Bearing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
