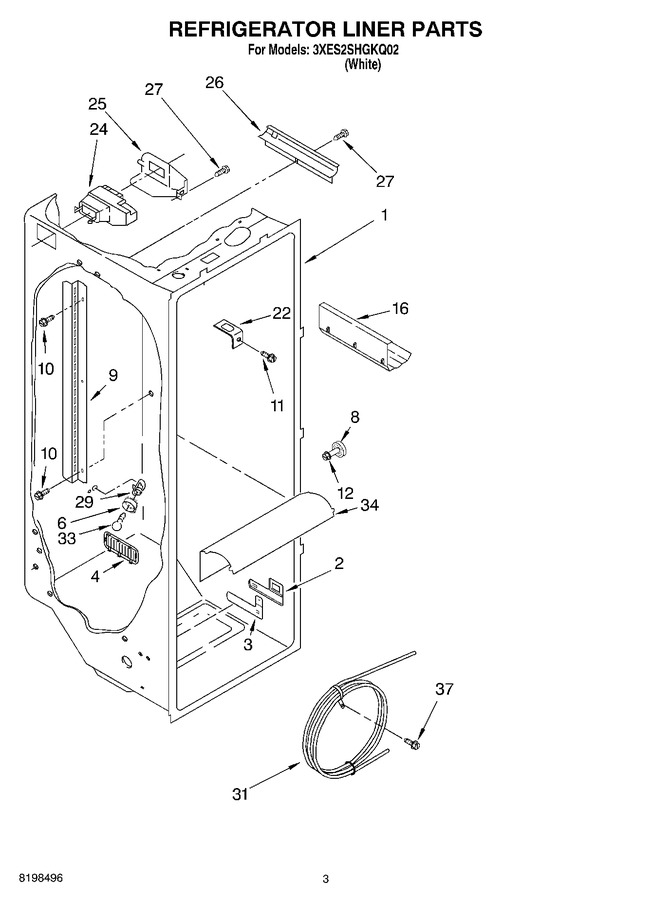

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 86.26
3	2182757		Slide Meat Pan Control				$ 75.15
4	2182147		Louver		Appelez-nous	-
6	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 78.07
8	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 9.78
9	2206270		Ladder, Shelf		Appelez-nous	-
10	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.45
11	WP488488		Screw (2)   (Replaces: 489290)				$ 7.67
12	WP3400806		Screw   (Replaces: 8281158)				$ 7.29
16	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 22.30
22	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 32.49
24	WPW10129864		Air Diffuser Assembly   (Replaces: 2209752)				$ 325.37
25	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 124.34
26	2150331		Cover, Conduit				$ 23.06
27	W10759522		Screw   (Replaces: 486298)				$ 7.42
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 104.10
31	WP2256126		Reservoir   (Replaces: 2217199)				$ 159.56
33	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.11
34	2209769		Light Lens		Appelez-nous	-
37	488280		Screw (2)		Appelez-nous	-
