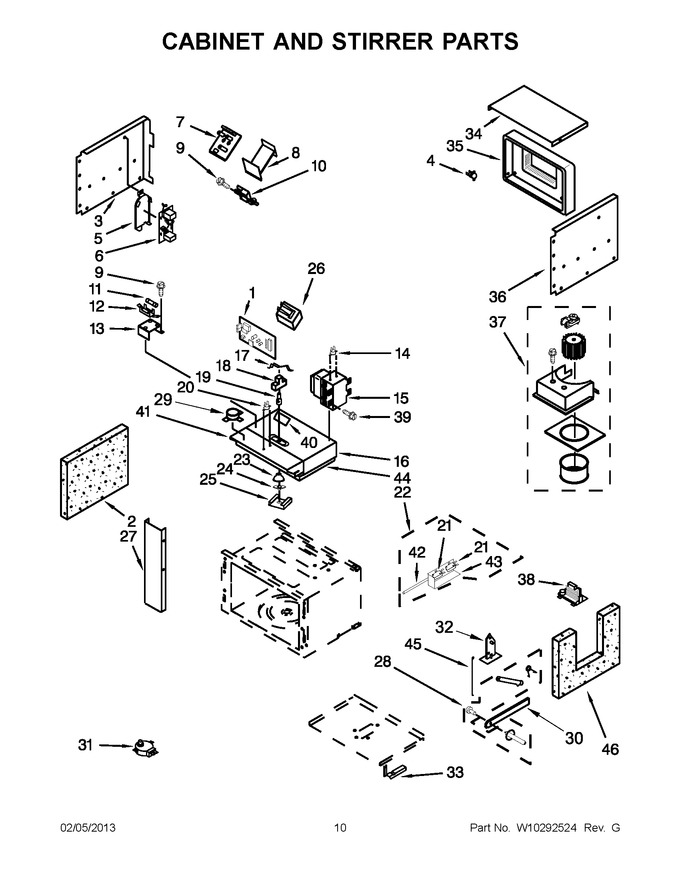

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10350780 | Control, Electric (Replaces: W10287989) |
|
Immediately | $ 272.11 | ||||
| 2 | W10130901 | Insulation, Side Left |
|
- | |||||
| 3 | W10120471 | Cover, Side Left |
|
- | |||||
| 4 | W11607085 | Thermostat (Replaces: W10120223) |
|
Immediately | $ 44.42 | ||||
| 5 | N/P | Not Serviced |
|
- | |||||
| 6 | W10853613 | Noise Filter (Replaces: W10287966) |
|
$ 215.76 | |||||
| 7 | W10120228 | Control, Electric Converter |
|
$ 187.73 | |||||
| 8 | N/P | Not Serviced |
|
- | |||||
| 9 | 461967825321 | Screw (Replaces: W10131249) |
|
$ 12.13 | |||||
| 10 | 461967842541 | Thermoactuator (Replaces: 4375427) |
|
$ 72.29 | |||||
| 11 | WP4375321 | Fuse (Replaces: 4375321) |
|
Immediately | $ 18.28 | ||||
| 12 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 87.31 | |||||
| 13 | W10130897 | Bracket, Support |
|
- | |||||
| 14 | W11233913 | Thermostat (Replaces: W10287986) |
|
Immediately | $ 156.08 | ||||
| 15 | W11346197 | Magnetron (Replaces: W10120113) |
|
Immediately | $ 271.25 | ||||
| 16 | N/P | Not Serviced |
|
- | |||||
| 17 | W10465869 | Spring, Lamp (Replaces: 4375319) |
|
Immediately | $ 103.76 | ||||
| 18 | W10536501 | Housing, Lamp (Replaces: W10287974) |
|
$ 68.37 | |||||
| 19 | W10886919 | Lamp, Halogen (Replaces: W10287972) |
|
Immediately | $ 32.22 | ||||
| 20 | W10287985 | Thermostat |
|
$ 98.13 | |||||
| 21 | W10211972 | Switch, Door (Replaces: 4375346) |
|
Immediately | $ 52.40 | ||||
| 22 | 461968971522 | Asm-interlock (Replaces: W10358246) |
|
Immediately | $ 156.78 | ||||
| 23 | 423107022541 | Reflector (Replaces: 4375320) |
|
$ 85.90 | |||||
| 24 | W11193483 | Lens, Lamp (Replaces: 4375318) |
|
Immediately | $ 104.82 | ||||
| 25 | W11440819 | Clip, Spring (Replaces: W10120231) |
|
$ 23.00 | |||||
| 26 | W11238401 | Transformer (Replaces: 8205692) |
|
Immediately | $ 360.89 | ||||
| 27 | N/P | Not Serviced |
|
- | |||||
| 28 | WPW10128850 | Assembly, Sliding Arm (Replaces: W10128850) |
|
Immediately | $ 142.08 | ||||
| 29 | W11699906 | Sensor, Humidity (Replaces: W10287988) |
|
$ 138.56 | |||||
| 30 | W11214480 | Arm, Sliding (Replaces: W10120236) |
|
$ 100.54 | |||||
| 31 | W10911403 | Motor, Turntable (Replaces: W10287967) |
|
Immediately | $ 117.53 | ||||
| 32 | W11684510 | Support (Replaces: 8205686) |
|
Immediately | $ 15.52 | ||||
| 33 | W10874474 | Hinge, Door (Replaces: W10120478) |
|
Immediately | $ 63.12 | ||||
| 34 | N/P | Not Serviced |
|
- | |||||
| 35 | N/P | Not Serviced |
|
- | |||||
| 36 | N/P | Not Serviced |
|
- | |||||
| 37 | W11344874 | Assembly, Blower (Replaces: W10330572) |
|
Immediately | $ 191.74 | ||||
| 38 | W10217711 | Inverter (Replaces: W10120229) |
|
Immediately | $ 289.63 | ||||
| 39 | 461967825971 | Screw (Replaces: W10130890) |
|
- | |||||
| 40 | N/P | Not Serviced |
|
- | |||||
| 41 | N/P | Not Serviced |
|
- | |||||
| 42 | WPW10120235 | Rod, Release (Replaces: W10120235) |
|
Immediately | $ 7.32 | ||||
| 43 | WP8205683 | Holder, Switch (Replaces: 8205683) |
|
Immediately | $ 99.41 | ||||
| 44 | N/P | Not Serviced |
|
- | |||||
| 45 | W11700292 | Spring, Torsion (Replaces: 8205704) |
|
$ 72.30 | |||||
| 46 | N/P | Not Serviced |
|
- |
