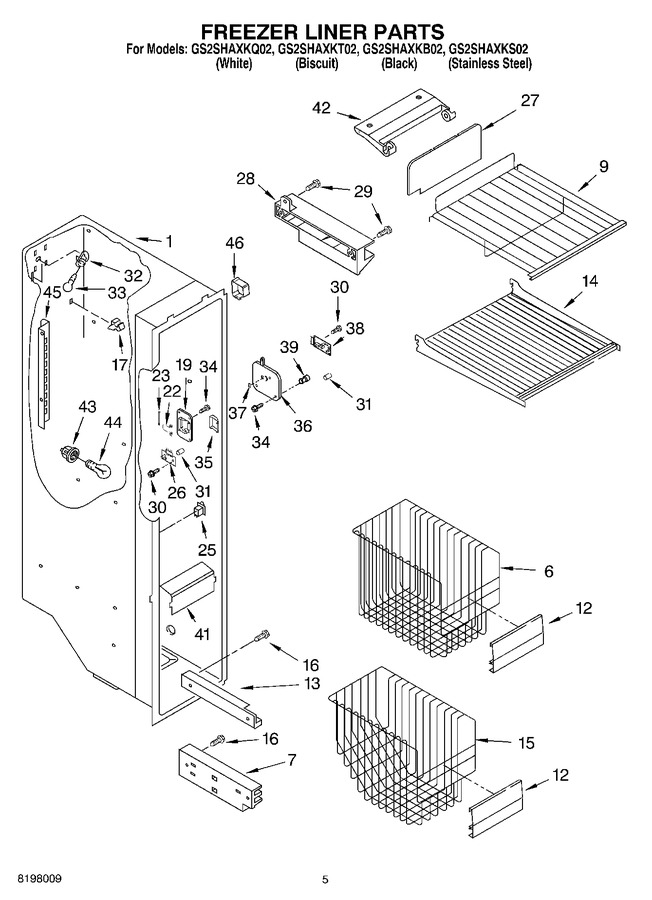

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Seviceable Part) |
|
- | |||||
| 6 | 2181761 | Basket, Tall |
|
- | |||||
| 7 | 2211740 | Track, Basket-dual (right Side) |
|
- | |||||
| 7 | 2211741 | Track, Basket-dual (left Side) |
|
- | |||||
| 9 | 2211743 | Shelf, Slide Out Upper |
|
- | |||||
| 12 | 2195904K | Basket, Front (Replaces: 2195904) |
|
- | |||||
| 13 | 2181759 | Shelf Track (left Side) |
|
- | |||||
| 13 | 2181760 | Shelf Track (right Side) |
|
- | |||||
| 14 | 2212343 | Shelf |
|
- | |||||
| 15 | 2181762 | Basket, Sloped |
|
- | |||||
| 16 | W10759522 | Screw (Replaces: 486298) |
|
$ 7.75 | |||||
| 17 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 10.42 | |||||
| 19 | WP2198587 | Cover, Emitter (Replaces: 2198587) |
|
$ 105.55 | |||||
| 22 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 87.08 | |||||
| 23 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 17.76 | |||||
| 25 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 38.18 | |||||
| 26 | W11629974 | P.c. Board Emitter (Replaces: 2198585) |
|
Immediately | $ 401.07 | ||||
| 27 | W10180062 | Cover, Ice Maker (Replaces: 2212319) |
|
$ 72.56 | |||||
| 28 | 2212321 | Slide, Ice Maker Mounting |
|
$ 67.14 | |||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 30 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.13 | |||||
| 31 | 2198665 | Tube, P.c. Board |
|
$ 21.52 | |||||
| 32 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 33 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 34 | WPW10142283 | Screw (Replaces: 8281185) |
|
$ 9.84 | |||||
| 35 | WP2198633 | Flipper (Replaces: 2198633) |
|
Immediately | $ 48.27 | ||||
| 36 | 2198588 | Cover, Receiver |
|
- | |||||
| 37 | 2315398 | Slide, Ice Maker Shut Off (Replaces: 2198637) |
|
$ 10.90 | |||||
| 38 | W11629974 | P.c. Board, Receiver (Replaces: 2198586) |
|
Immediately | $ 401.07 | ||||
| 39 | WP2198643 | Lens (Replaces: 2198643) |
|
$ 8.18 | |||||
| 41 | 2212376 | Light Lens |
|
$ 91.18 | |||||
| 42 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 7.19 | |||||
| 43 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 101.10 | |||||
| 44 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 45 | 2212315 | Ladder (left Side) |
|
- | |||||
| 45 | 2212316 | Ladder (right Side) |
|
- | |||||
| 46 | 2219878 | Shield, Wiring |
|
- |
