SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Cabinet And Stirrer Parts


06 - Microwave Compartment Parts


07 - Microwave Door Parts

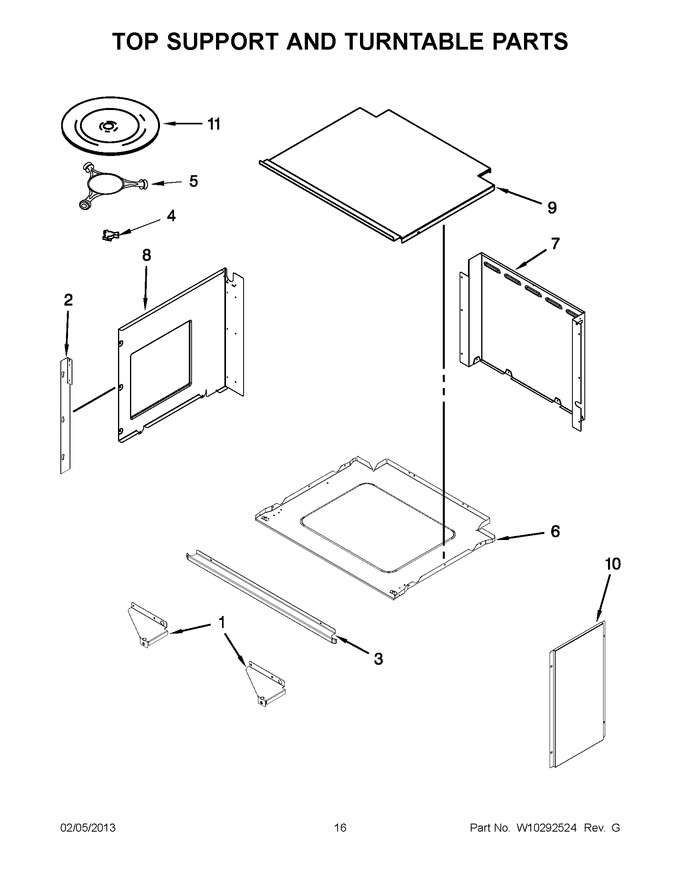

08 - Top Support And Turntable Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10239157		Bracket, Lower (right)				$ 20.73
1	W10239156		Bracket, Lower (left)				$ 21.24
2	W10277588		Trim, Side				$ 174.85
3	WPW10176036		Trim, Bottom Vent (stainless)   (Replaces: W10176036)				$ 200.49
3	W10238700		Trim, Bottom Vent (black)				$ 176.05
4	WPW10776938		Drive, Turn Table   (Replaces: 8205677)			Immediately	$ 29.47
5	W11110134		Ring, Turntable   (Replaces: 8205678)			Immediately	$ 74.00
6	W10176063		Retainer, Bottom		Appelez-nous	-
7	W10186984		Cover, Rear		Appelez-nous	-
8	W10176064		Retainer, Side (right)		Appelez-nous	-
8	W10176065		Retainer, Side (left)		Appelez-nous	-
9	W10175998		Panel, Top Retainer		Appelez-nous	-
10	W10176066		Cover, Service		Appelez-nous	-
11	W11373838		Turntable   (Replaces: 4455915)			Immediately	$ 78.50

    View Diagram in Separate Window       Print Part List
