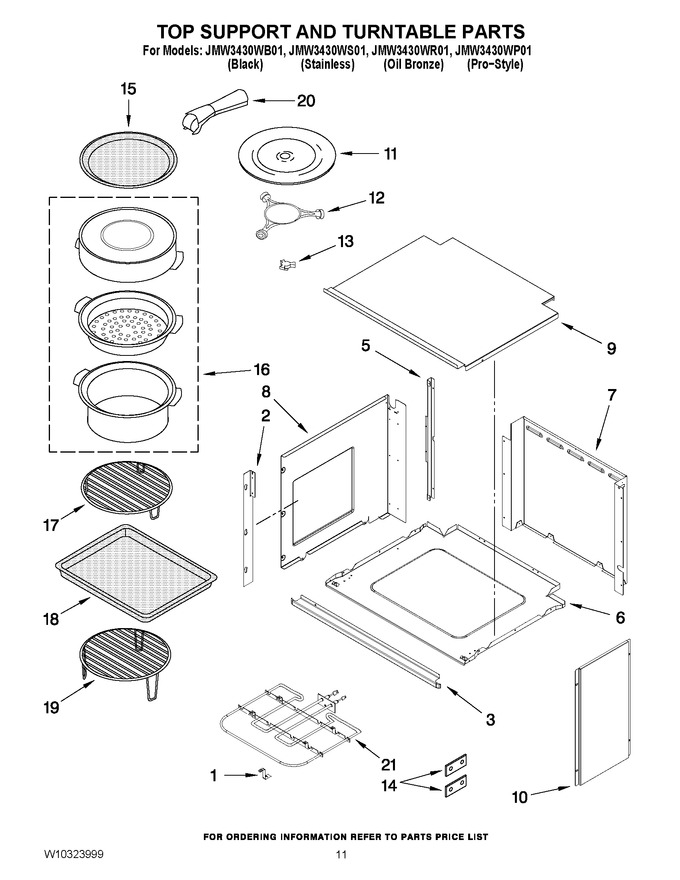

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11724411		Support, Grill   (Replaces: W10288008)			Immediately	$ 57.68
2	W10493731		Trim, Side Microwave (right)		Appelez-nous	-
2	W10493732		Trim, Side Microwave (left)		Appelez-nous	-
3	W10486211		Vent, Top				$ 53.81
5	W10176179		Bracket, Middle		Appelez-nous	-
6	W10176063		Retainer, Bottom		Appelez-nous	-
7	W10186984		Cover, Rear		Appelez-nous	-
8	W10176064		Retainer, Side (right)		Appelez-nous	-
8	W10176065		Retainer, Side (left)		Appelez-nous	-
9	W10175998		Cover, Top		Appelez-nous	-
10	W10176066		Cover, Service		Appelez-nous	-
11	W11373838		Turntable   (Replaces: 8205676)			Immediately	$ 78.50
12	W11110134		Ring   (Replaces: 8205678)			Immediately	$ 74.00
13	WPW10776938		Drive, Tt   (Replaces: 8205677)			Immediately	$ 29.47
14	W10915651		Cover, Plates   (Replaces: W10120230)			Immediately	$ 84.67
15	W11512490		Plate, Crisp   (Replaces: W10330573)			Immediately	$ 121.50
16	W10660052		Steamer   (Replaces: W10120484)			Immediately	$ 28.59
17	4452220		Rack, Convection				$ 162.26
18	W11512489		Plate, Baking   (Replaces: W10120486)				$ 92.91
19	W11175831		Rack   (Replaces: W10120483)				$ 42.74
20	W10851464		Handle, Pan   (Replaces: W10120481)				$ 24.83
21	W10776940		Heater, Grill   (Replaces: W10120226)				$ 359.46
