01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts


12 - Air Flow Parts - Parts Not Illustrated

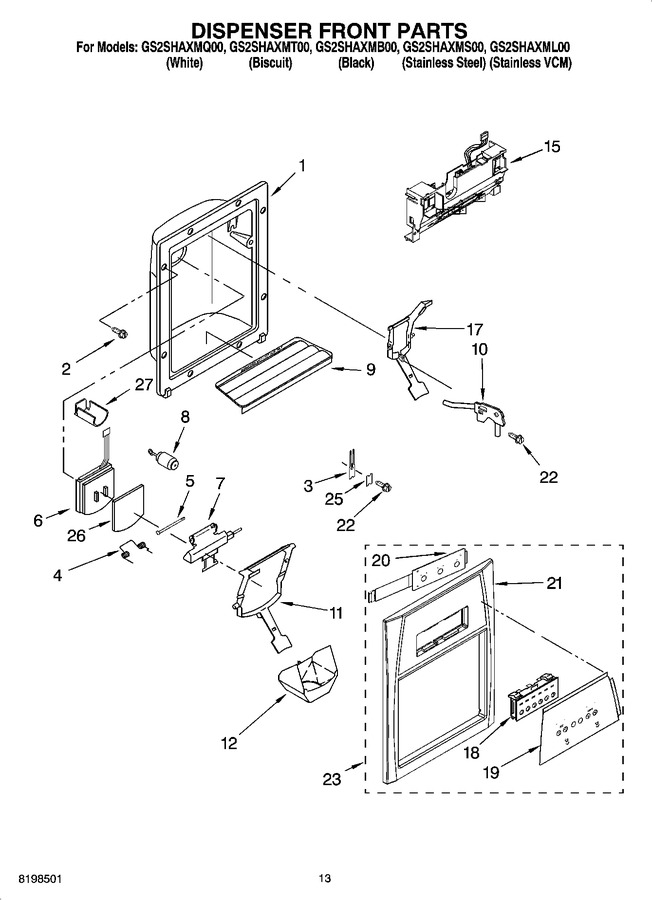

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 12.36
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 87.40
5	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
6	WP2180353		Door, Ice   (Replaces: 2252076)			Immediately	$ 26.83
7	2206423		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	2207048T		Grille, Overflow (biscuit)		Appelez-nous	-
9	2207048W		Grille, Overflow (white)		Appelez-nous	-
9	2207048B		Grille, Overflow (black)				$ 30.06
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2209718)				$ 140.84
11	WP2255431B		Lever, Ice Dispenser (black)   (Replaces: 2255431B)				$ 110.69
11	2255431T		Lever, Ice Dispenser (biscuit)				$ 43.34
11	WP2255431W		Lever, Ice Dispenser (white)   (Replaces: 2255431W)				$ 107.19
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
15	2252050		Bracket, Control		Appelez-nous	-
17	WP2255432B		Lever, Water Dispenser (black)   (Replaces: 2255432B)				$ 111.36
17	WP2255432T		Lever, Water Dispenser (biscuit)   (Replaces: 2255432T)				$ 105.85
17	WP2255432W		Lever, Water Dispenser (white)   (Replaces: 2255432W)				$ 106.00
22	WP3400906		Screw   (Replaces: 489000)				$ 9.05
23	2252079W		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)				$ 183.05
23	2252079T		Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit)				$ 102.96
23	2252079B		Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)		Appelez-nous	-
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
26	987121		Shield, Ice Door				$ 5.91
27	2252127		Sleeve, Mechanism Display				$ 22.00

    View Diagram in Separate Window       Print Part List
