SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts


12 - Air Flow Parts, Optional Parts

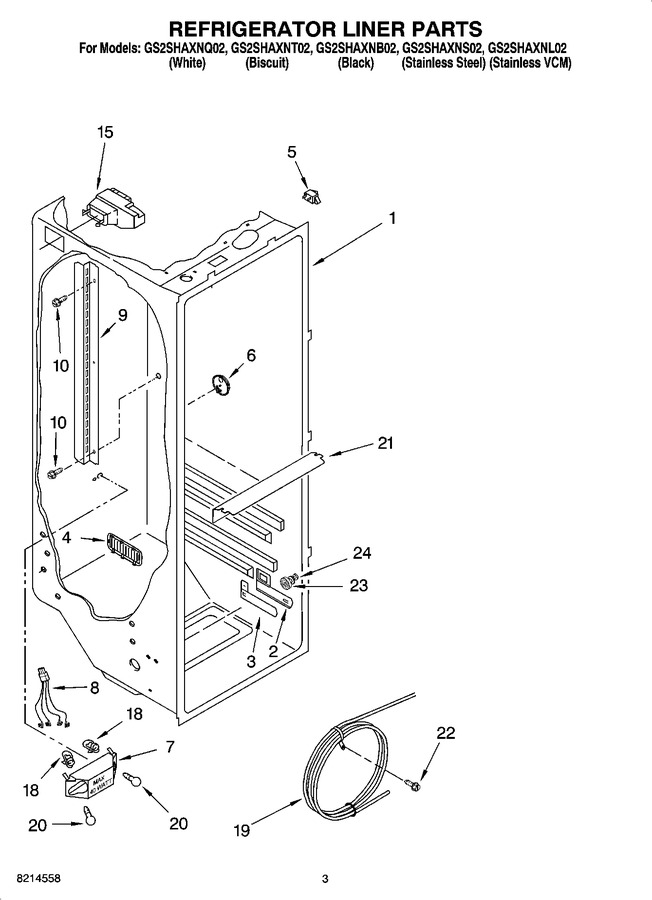

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 91.28
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 37.23
6	2261601		Door Control Asm				$ 50.22
7	2256035		Bracket, Dual Crisper				$ 62.54
8	2311637		Wire Harness, Dual Crisper   (Replaces: 2256037)				$ 140.23
9	2206270		Shelf Ladder		Appelez-nous	-
10	WP489478		Screw   (Replaces: 489478)				$ 7.75
15	WPW10151374		Air Diffuser Assembly   (Replaces: 2209753)			Immediately	$ 99.78
18	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
19	WP2256126		Reservoir   (Replaces: 2256126)				$ 168.85
20	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
21	2209769		Light Lens		Appelez-nous	-
22	488280		Screw		Appelez-nous	-
23	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.07
24	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05

    View Diagram in Separate Window       Print Part List
