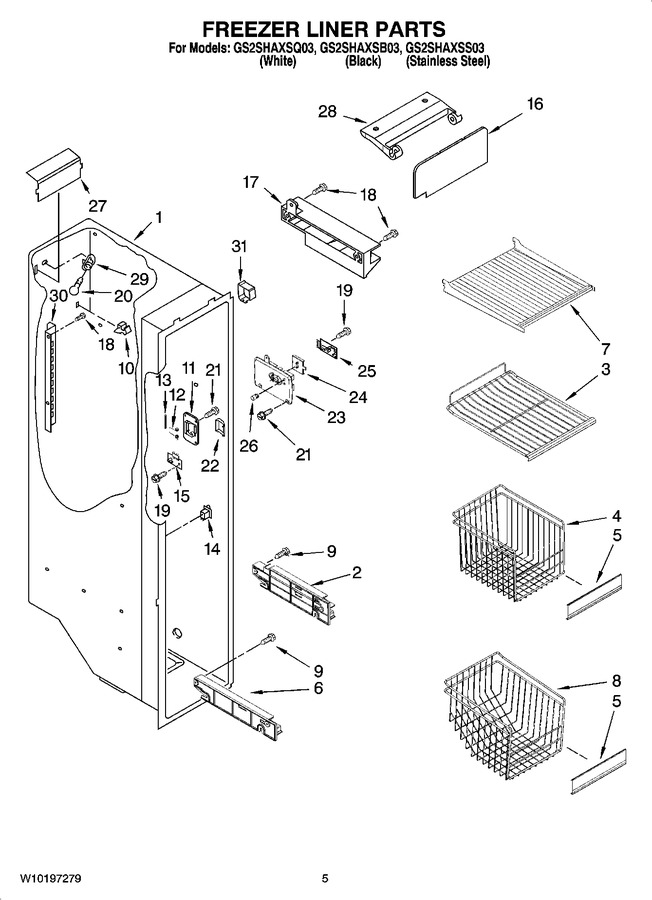

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2301291		Track, Basket-dual (right)				$ 154.30
2	2301292		Track, Basket-dual (left)				$ 174.94
3	2211743K		Shelf, Slide Out				$ 36.71
4	2301192		Basket, Tall		Appelez-nous	-
5	2195904K		Basket Front		Appelez-nous	-
6	2301290		Shelf Track (left Side)				$ 134.88
6	2301289		Shelf Track (right Side)				$ 86.80
7	2212343K		Shelf		Appelez-nous	-
8	2301193		Basket, Slope		Appelez-nous	-
9	W10759522		Screw (8)   (Replaces: W10004810)				$ 7.75
10	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
11	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 105.55
12	WP2198635		Spring   (Replaces: 2198635)				$ 87.08
13	WP2198634		Pin   (Replaces: 2198634)				$ 17.76
14	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
15	W11629974		P.c. Board Emitter   (Replaces: 2220398)			Immediately	$ 401.07
16	W10180062		Cover, Ice Maker				$ 72.56
17	2212321		Slide, Ice Maker				$ 67.14
18	WP489478		Screw   (Replaces: 489478)				$ 7.75
19	2006254		Screw   (Replaces: 489214)				$ 13.13
20	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
21	WPW10142283		Screw   (Replaces: 8281185)				$ 9.84
22	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 48.27
23	W10173569		Cover, Receiver				$ 66.93
24	2315398		Slide, Ice Maker Shut Off				$ 10.90
25	W10757851		P.c. Board, Receiver   (Replaces: 2255114)			Immediately	$ 311.76
26	WP2198643		Lens   (Replaces: 2198643)				$ 8.18
27	2212376		Light Lens				$ 91.18
28	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.19
29	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
30	2212315		Ladder (left Side)		Appelez-nous	-
30	2212316		Ladder (right Side)		Appelez-nous	-
31	2303234		Shield, Wiring		Appelez-nous	-
