01 - Cooktop
02 - Control Panel
03 - Manifold
04 - Chassis

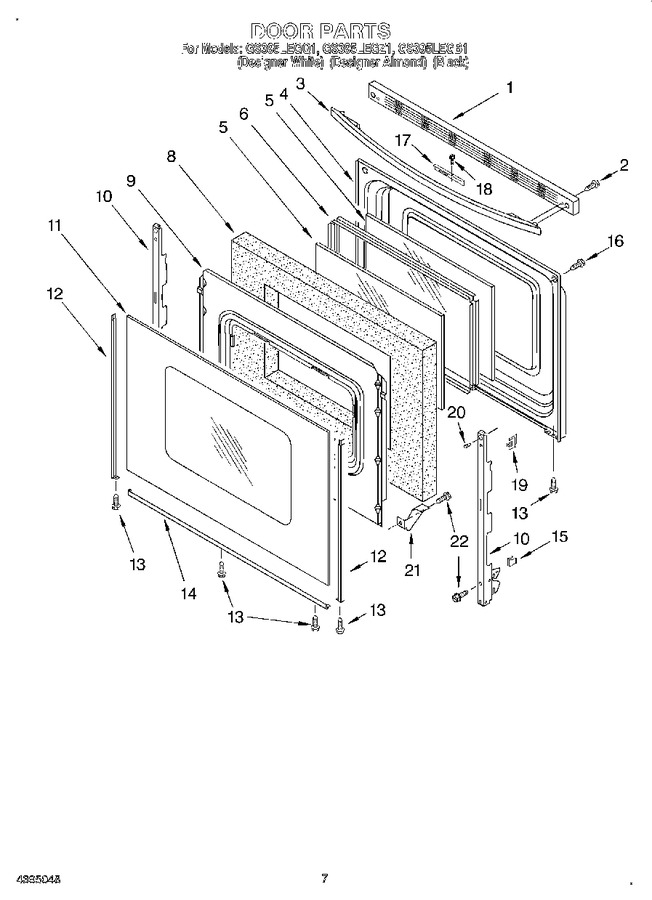

05 - Door
06 - Drawer And Broiler, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3196821 | Trim, Top (white) |
|
- | |||||
| 1 | 3196820 | Trim, Top (almond) |
|
- | |||||
| 1 | 3196819 | Trim, Top (black) |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 8.69 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 3195218) |
|
$ 353.02 | |||||
| 3 | 3195921 | Handle, Door (almond) |
|
- | |||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: 3195922) |
|
$ 257.76 | |||||
| 4 | 3186292 | Liner, Door |
|
- | |||||
| 5 | WP8053948 | Glass, Inner (2) (Replaces: 3186271) |
|
$ 178.28 | |||||
| 6 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 84.86 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 3186250) |
|
Immediately | $ 96.54 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 3186297) |
|
$ 221.30 | |||||
| 10 | WP8053807 | Hinge, Door (2) (Replaces: 3186068) |
|
$ 90.81 | |||||
| 11 | WP8053834 | Glass, Outer Door (white) (Replaces: 8053480) |
|
$ 277.96 | |||||
| 11 | WPW10118455 | Glass, Outer Door (black) (Replaces: 8053478) |
|
Immediately | $ 316.86 | ||||
| 11 | 8053482 | Glass, Outer Door (almond) |
|
- | |||||
| 12 | 8184860 | Trim, Door Side (almond L.h.) (Replaces: 3195975) |
|
$ 144.34 | |||||
| 12 | 8184858 | Trim, Door Side (black R.h.) (Replaces: 3195973) |
|
$ 160.81 | |||||
| 12 | 8184858 | Trim, Door Side (black L.h.) (Replaces: 3195976) |
|
$ 160.81 | |||||
| 12 | 8184860 | Trim, Door Side (almond R.h.) (Replaces: 3195972) |
|
$ 144.34 | |||||
| 12 | 8184859 | Trim, Door Side (white R.h.) (Replaces: 3195971) |
|
$ 162.77 | |||||
| 12 | 8184859 | Trim, Door Side (white L.h.) (Replaces: 3195974) |
|
$ 162.77 | |||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.19 | ||||
| 14 | 8184858 | Trim, Lower Door (black) (Replaces: 3195424) |
|
$ 160.81 | |||||
| 14 | 8184859 | Trim, Lower Door (white) (Replaces: 3195422) |
|
$ 162.77 | |||||
| 14 | 8184860 | Trim, Lower Door (almond) (Replaces: 3195423) |
|
$ 144.34 | |||||
| 15 | 3196925 | Clip, Door Stop (2) |
|
$ 9.06 | |||||
| 16 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.96 | ||||
| 17 | 3195914 | Bracket, Latch |
|
- | |||||
| 18 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.75 | ||||
| 19 | 3196025 | Clip, Glass (6) |
|
$ 20.10 | |||||
| 20 | 238614 | Bumper (2) (Replaces: 3195809) |
|
$ 80.76 | |||||
| 21 | 3196794 | Bracket, Window (2) |
|
$ 24.34 | |||||
| 22 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 |
