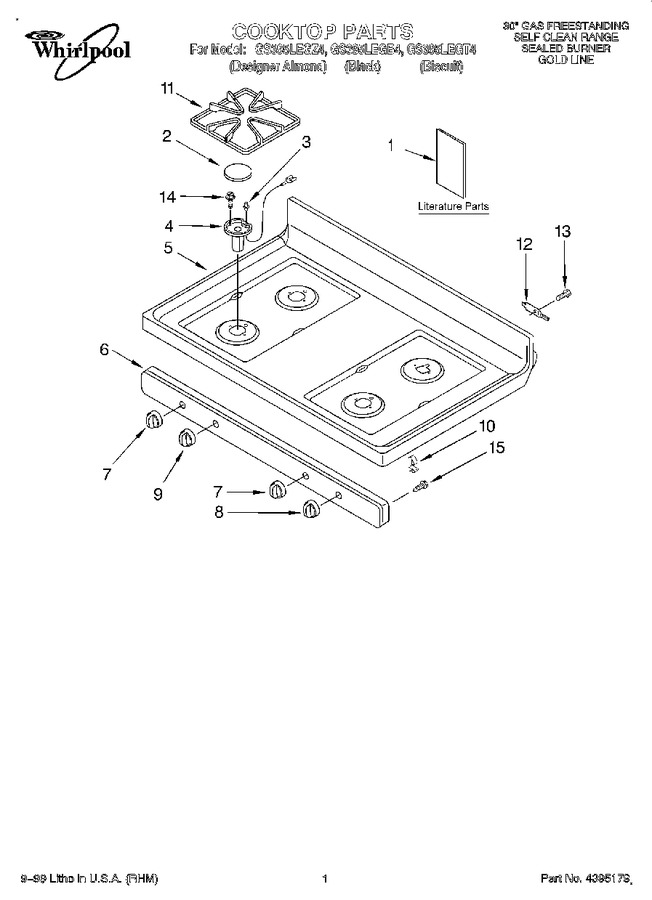

01 - Cooktop, Literature
02 - Control Panel
03 - Manifold
04 - Chassis
05 - Door
06 - Drawer And Broiler, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8053366 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT3195945 | Literature Parts (installation Instr (template)) |
|
- | |||||
| 1 | LIT8053427 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT3196061 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 8272970 | Cap, Burner (black, Large (3)) |
|
- | |||||
| 2 | 8272973 | Cap, Burner (black, Small (1)) |
|
- | |||||
| 3 | W11032529 | Ignitor, Burner (right Front) (Replaces: 8053720) |
|
$ 75.23 | |||||
| 3 | W11032529 | Ignitor, Burner (right Rear) (Replaces: 8053719) |
|
$ 75.23 | |||||
| 3 | W11032529 | Ignitor, Burner (left Front) (Replaces: 8053718) |
|
$ 75.23 | |||||
| 3 | W11032529 | Ignitor, Burner (left Rear) (Replaces: 8053717) |
|
$ 75.23 | |||||
| 4 | WP8053360 | Burner, 12500 Btu (lf, Lr, Rf) (Replaces: 8053360) |
|
$ 101.05 | |||||
| 4 | 3186478 | Burner, 6,500 Btu (rr) |
|
$ 77.59 | |||||
| 5 | 8053363 | Cooktop (almond) |
|
- | |||||
| 5 | 8053364 | Cooktop (black) |
|
- | |||||
| 5 | 8272523 | Cooktop (biscuit) |
|
- | |||||
| 6 | 3186007 | Panel, Manifold (almond Model) |
|
- | |||||
| 6 | 8523855 | Panel, Manifold (black) (Replaces: 3186018) |
|
$ 176.18 | |||||
| 6 | 8272520 | Panel, Manifold (biscuit) |
|
- | |||||
| 7 | 8053597 | Knob, Control (2) (almond) |
|
- | |||||
| 7 | WP8053595 | Knob, Control (2) (black) (Replaces: 8053595) |
|
$ 25.08 | |||||
| 7 | 8272524 | Knob, Control (2) (biscuit) |
|
- | |||||
| 8 | 8272525 | Knob, Accusimmer (biscuit) |
|
- | |||||
| 8 | WP8053595 | Knob, Accusimmer (black) (Replaces: 8053598) |
|
$ 25.08 | |||||
| 8 | 8053600 | Knob, Accusimmer (almond) |
|
- | |||||
| 9 | 8272526 | Knob, Powerburner (biscuit) |
|
- | |||||
| 9 | WP8053595 | Knob, Powerburner (black) (Replaces: 8053601) |
|
$ 25.08 | |||||
| 9 | 8053603 | Knob, Powerburner (almond) |
|
- | |||||
| 10 | 3195813 | Clip, Cooktop (2) |
|
- | |||||
| 11 | 8053905 | Grate, Burner (4) (black) |
|
- | |||||
| 12 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3400861 | Screw (Replaces: 3400856) |
|
$ 8.78 | |||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
