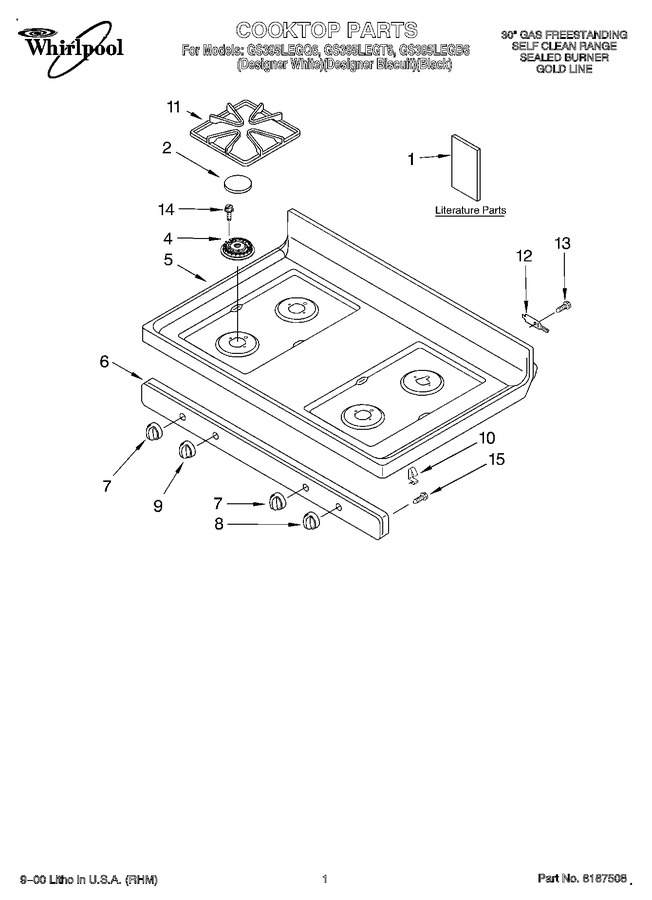

01 - Cooktop, Literature
02 - Control Panel
03 - Manifold
04 - Chassis
05 - Drawer & Broiler
06 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8273170 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT3195945 | Literature Parts (installation Instr (template)) |
|
- | |||||
| 1 | LIT8273155 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8272223 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8274006 | Literature Parts (tech Sheet (supplemental)) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | WP3191898 | (cap, Burner (right Rear)) (black) (Replaces: 3191898) |
|
$ 67.62 | |||||
| 2 | 3191899 | Cap, Burner (right Rear) (grey) |
|
$ 31.21 | |||||
| 2 | WP3191904 | Cap, Burner Left Front (black) (Replaces: 3191904) |
|
$ 175.39 | |||||
| 2 | WP3191905 | Cap, Burner Left Front (grey) (Replaces: 3191905) |
|
$ 86.65 | |||||
| 2 | WP3191901 | Cap, Burner (r. Front, L. Rear) (black) (Replaces: 3191901) |
|
$ 118.70 | |||||
| 2 | WP3191903 | Cap, Burner (r. Front, L. Rear) (grey) (Replaces: 3191903) |
|
$ 177.35 | |||||
| 4 | WP4455980 | Burner (lr, Rf) (Replaces: 8273215) |
|
$ 62.10 | |||||
| 4 | 8273216 | Burner (right Rear) |
|
- | |||||
| 4 | WP4455981 | Burner (left Front) (Replaces: 8273214) |
|
Immediately | $ 87.52 | ||||
| 5 | 8272251 | Cooktop (white) |
|
- | |||||
| 5 | 8195546 | Cooktop (biscuit) (Replaces: 8272743) |
|
- | |||||
| 5 | 8272253 | Cooktop (black) |
|
- | |||||
| 6 | 8273028 | Panel, Manifold (biscuit) |
|
- | |||||
| 6 | 8523855 | Panel, Manifold (black) (Replaces: 8273027) |
|
$ 167.79 | |||||
| 6 | WP8523854 | Panel, Manifold (white) (Replaces: 8273025) |
|
$ 276.74 | |||||
| 7 | WP8273104 | Knob, Control (2) (white) (Replaces: 8273104) |
|
Immediately | $ 17.13 | ||||
| 7 | WP8273106 | Knob, Control (2) (biscuit) (Replaces: 8273106) |
|
$ 18.62 | |||||
| 7 | WP8273103 | Knob, Control (2) (black) (Replaces: 8273103) |
|
Immediately | $ 16.05 | ||||
| 8 | WP8273106 | Knob, Accusimmer (biscuit) (Replaces: 8273110) |
|
$ 18.62 | |||||
| 8 | WP8273104 | Knob, Accusimmer (white) (Replaces: 8273108) |
|
Immediately | $ 17.13 | ||||
| 8 | WP8273103 | Knob, Accusimmer (black) (Replaces: 8273107) |
|
Immediately | $ 16.05 | ||||
| 9 | WP8273104 | Knob, Powerburner (white) (Replaces: 8273112) |
|
Immediately | $ 17.13 | ||||
| 9 | WP8273103 | Knob, Powerburner (black) (Replaces: 8273111) |
|
Immediately | $ 16.05 | ||||
| 9 | WP8273106 | Knob, Powerburner (biscuit) (Replaces: 8273114) |
|
$ 18.62 | |||||
| 10 | 3195813 | Clip, Cooktop (2) |
|
- | |||||
| 11 | WPW10447925 | Grate, Burner (4) (grey) (Replaces: 8053455) |
|
Immediately | $ 285.29 | ||||
| 11 | WP8053456 | Grate, Burner (4) (black) (Replaces: 8053456) |
|
$ 201.95 | |||||
| 12 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 12.55 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 14 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 7.13 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
