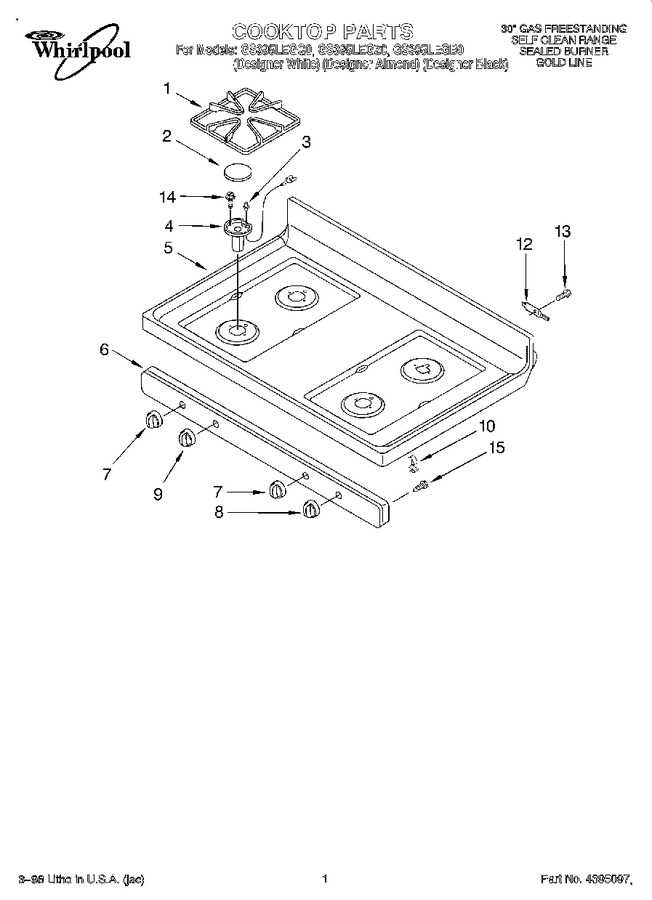

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8053456 | Grate, Burner (4) (black) (Replaces: 8053456) |
|
$ 201.95 | |||||
| 1 | WPW10447925 | Grate, Burner (4) (grey) (Replaces: 8053455) |
|
Immediately | $ 285.29 | ||||
| 2 | 8053463 | Cap, Burner (large (3) (black)) |
|
$ 43.95 | |||||
| 2 | 8053465 | Cap, Burner Large (3) (gray) |
|
- | |||||
| 2 | 8053468 | (cap, Burner Small (1)) (gray) |
|
- | |||||
| 2 | 8053466 | Cap, Burner (small (1) (black)) |
|
- | |||||
| 3 | W11032529 | Ignitor, Burner (left Rear) (Replaces: 8053717) |
|
$ 69.90 | |||||
| 3 | W11032529 | Ignitor, Burner (right Front) (Replaces: 8053720) |
|
$ 69.90 | |||||
| 3 | W11032529 | Ignitor, Burner (right Rear) (Replaces: 8053719) |
|
$ 69.90 | |||||
| 3 | W11032529 | Ignitor, Burner (left Front) (Replaces: 8053718) |
|
$ 69.90 | |||||
| 4 | WP8053360 | Burner, 12500 Btu (lf, Lr, Rf) (Replaces: 8053360) |
|
$ 96.24 | |||||
| 4 | 3186478 | Burner, 6,500 Btu (rr) |
|
$ 77.59 | |||||
| 5 | 8053362 | Cooktop (white) |
|
- | |||||
| 5 | 8053363 | Cooktop (almond) |
|
- | |||||
| 5 | 8053364 | Cooktop (black) |
|
- | |||||
| 6 | WP8523854 | Panel, Manifold (white) (Replaces: 3186006) |
|
$ 276.74 | |||||
| 6 | 3186007 | Panel, Manifold (almond Model) |
|
- | |||||
| 6 | 8523855 | Panel, Manifold (black) (Replaces: 3186018) |
|
$ 167.79 | |||||
| 7 | WP8053595 | Knob, Control (2) (black) (Replaces: 8053595) |
|
$ 23.89 | |||||
| 7 | WP8053596 | Knob, Control (2) (white) (Replaces: 8053596) |
|
$ 24.73 | |||||
| 7 | 8053597 | Knob, Control (2) (almond) |
|
- | |||||
| 8 | 8053600 | Knob, Accusimmer (almond) |
|
- | |||||
| 8 | WP8053595 | Knob, Accusimmer (black) (Replaces: 8053598) |
|
$ 23.89 | |||||
| 8 | WP8053596 | Knob, Accusimmer (white) (Replaces: 8053599) |
|
$ 24.73 | |||||
| 9 | WP8053595 | Knob, Powerburner (black) (Replaces: 8053601) |
|
$ 23.89 | |||||
| 9 | 8053603 | Knob, Powerburner (almond) |
|
- | |||||
| 9 | WP8053596 | Knob, Powerburner (white) (Replaces: 8053602) |
|
$ 24.73 | |||||
| 10 | 3195813 | Clip, Cooktop (2) |
|
- | |||||
| 12 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 12.55 | ||||
| 13 | W11233072 | Screw, (2) (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 14 | WP3400861 | Screw (Replaces: 3400856) |
|
$ 7.95 | |||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
