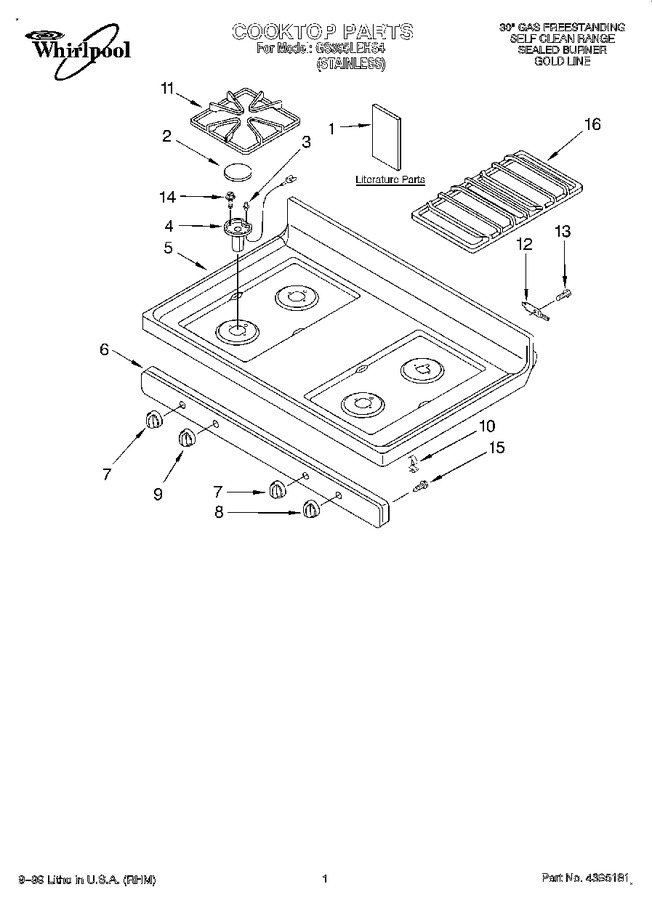

01 - Cooktop, Literature
02 - Control Panel
03 - Manifold
04 - Chassis
05 - Door
06 - Drawer And Broiler, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8053366 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT3195945 | Literature Parts (template (instruct-install)) |
|
- | |||||
| 1 | LIT8272338 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT3196061 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 8272970 | Cap, Burner (large (3)) |
|
- | |||||
| 2 | 8272973 | Cap, Burner (small (1)) |
|
- | |||||
| 3 | W11032529 | Ignitor, Burner (right Rear) (Replaces: 8053719) |
|
$ 75.23 | |||||
| 3 | W11032529 | Ignitor, Burner (left Front) (Replaces: 8053718) |
|
$ 75.23 | |||||
| 3 | W11032529 | Ignitor, Burner (left Rear) (Replaces: 8053717) |
|
$ 75.23 | |||||
| 3 | W11032529 | Ignitor, Burner (right Front) (Replaces: 8053720) |
|
$ 75.23 | |||||
| 4 | WP8053360 | Burner, 12500 Btu (lf, Lr, Rf) (Replaces: 8053360) |
|
$ 101.05 | |||||
| 4 | 3186478 | Burner, 6,500 Btu (rr) |
|
$ 77.59 | |||||
| 5 | 8053364 | Cooktop |
|
- | |||||
| 6 | 8523855 | Panel, Manifold (Replaces: 3186018) |
|
$ 176.18 | |||||
| 7 | 8272406 | Knob, Control (2) |
|
- | |||||
| 8 | 8272407 | Knob, Accusimmer |
|
- | |||||
| 9 | 8272408 | Knob, Powerburner |
|
- | |||||
| 10 | 3195813 | Clip, Cooktop (2) |
|
- | |||||
| 11 | 8053905 | Grate, Burner (4) |
|
- | |||||
| 12 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3400861 | Screw (Replaces: 3400856) |
|
$ 8.78 | |||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 16 | 8272417 | Grate, Center |
|
- |
