01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Door


06 - Drawer & Broiler

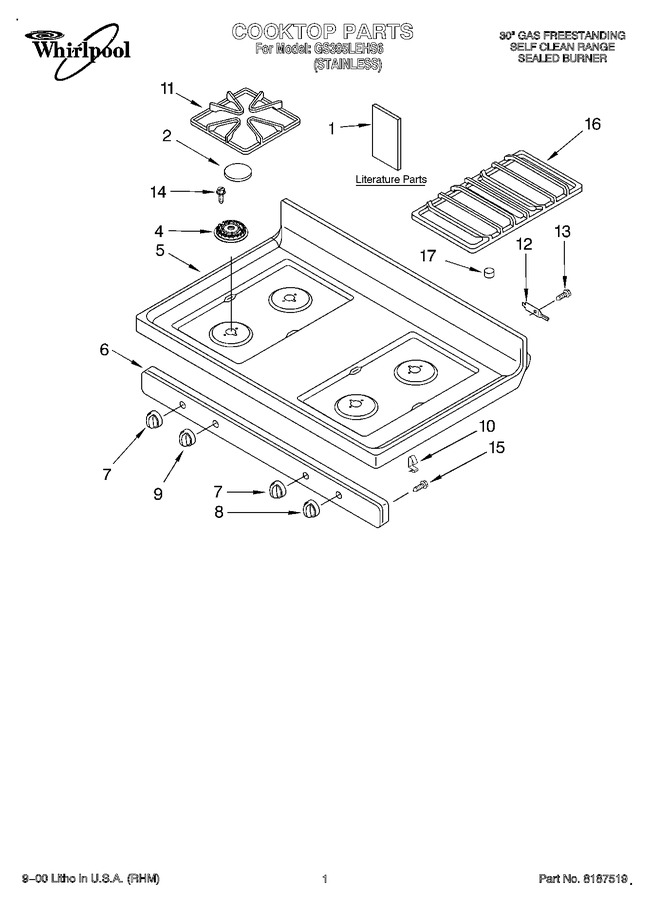

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8273170		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3195945		Literature Parts (template (instruct-install))		Appelez-nous	-
1	LIT8273155		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8272223		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8274006		Literature Parts (tech Sheet (supplemental))		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WP3191898		Cap, Burner (rr)   (Replaces: 3191898)				$ 71.00
2	WP3191904		Cap, Burner (lf)   (Replaces: 3191904)				$ 184.16
2	WP3191901		Cap, Burner (rf, Lr)   (Replaces: 3191901)				$ 128.91
4	8273216		Burner (burner (rr))		Appelez-nous	-
4	WP4455980		Burner (lr, Rf)   (Replaces: 8273215)				$ 65.21
4	WP4455981		Burner (lf)   (Replaces: 8273214)			Immediately	$ 91.90
5	8272253		Cooktop		Appelez-nous	-
6	8523855		Panel, Manifold   (Replaces: 8273027)				$ 176.18
7	8273279		Knob, Control (2)				$ 18.22
8	8273280		Knob, Accusimmer		Appelez-nous	-
9	8273281		Knob, Powerburner		Appelez-nous	-
10	3195813		Clip, Cooktop (2)		Appelez-nous	-
11	WP8053456		Grate, Burner (4)   (Replaces: 8053456)				$ 212.05
12	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 13.18
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 8.56
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
16	8272417		Grate, Center		Appelez-nous	-
17	8183759		Pad, Grate (4)				$ 13.13
