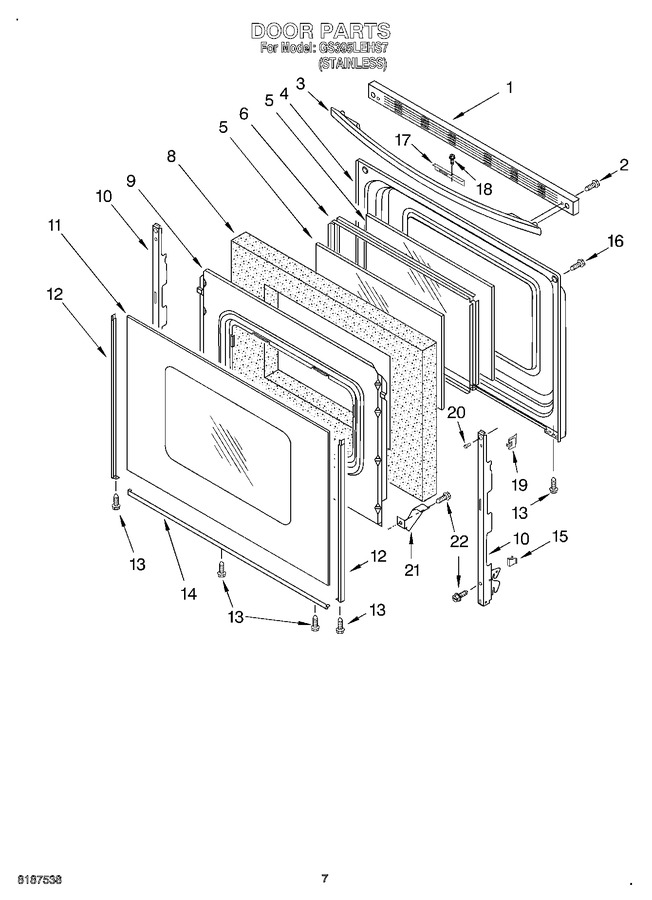

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8272243		Trim, Top		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202217		Handle, Door   (Replaces: 3195922)				$ 270.65
4	3186292		Liner, Door		Appelez-nous	-
5	WP8053948		Glass, Inner (2)   (Replaces: 3186271)				$ 178.28
6	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 101.37
9	W11539580		Retainer, Insul.   (Replaces: 3186297)				$ 233.31
10	8272822		Hinge, Door (2)				$ 71.88
11	8272215		Glass, Outer Door (stainless)		Appelez-nous	-
12	8184858		Trim, Door Side (black R.h.)   (Replaces: 3195973)				$ 168.85
12	8184858		Trim, Door Side (black L.h.)   (Replaces: 3195976)				$ 168.85
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
14	8184858		Trim, Lower Door   (Replaces: 8272242)				$ 168.85
15	3196925		Clip, Door Stop (2)				$ 9.06
16	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 8.42
17	3195914		Bracket, Latch		Appelez-nous	-
18	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
19	3196025		Clip, Glass (6)				$ 20.10
20	238614		Bumper (2)   (Replaces: 3195809)				$ 84.79
21	3196794		Bracket, Window (2)				$ 24.34
22	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
